WS80A with Elite
CrystalLive™ 3D
High Definition Volume Imaging™ (HDVI™) is a volume rendering technology that improves visualization of edges and small structures in volume data. HDVI™ provides upgraded marginal expression and image saturation with dedicated image sets for 3D/4D.
CrystalLive™ Color
CrystalLive™ Color, Samsung’s advanced blood flow imaging technologies in color mode, enhances the visualization and hemodynamics of the blood flow.
Features
Focusing on diagnostic solutions for women’s health
The WS80A with Elite features with Crystal Clear Cycle™, an integrated solution for women’s health issues, and provides effective diagnostic solutions for the most significant events in women’s lives.
Advanced 3D Rendering and Color Technologies
CrystalLive™ 3D
Powered by CrystalLive™
CrystalLive™ is a new ultrasound imaging engine applied Samsung’s sophisticated image processing technologies. WS80A with Elite V4.01 incorporates CrystalLive™ 3D and CrystalLive™ Color, Samsung’s advanced 3D rendering and color technologies, to provide improved visualization and structure expression.
Margin enhancement with HDVI™
High Definition Volume Imaging™ (HDVI™) is a volume rendering technology that improves visualization of edges and small structures in volume data. HDVI™ provides upgraded marginal expression and image saturation with dedicated image sets for 3D/4D.
※ Optional Extra

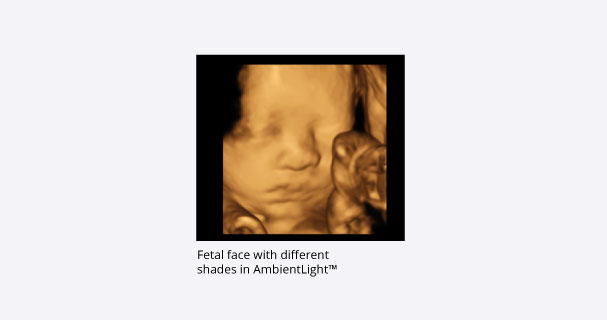

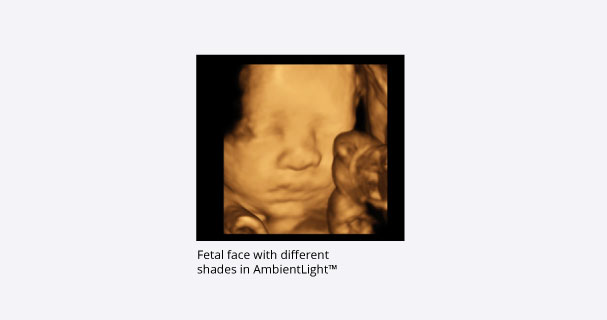

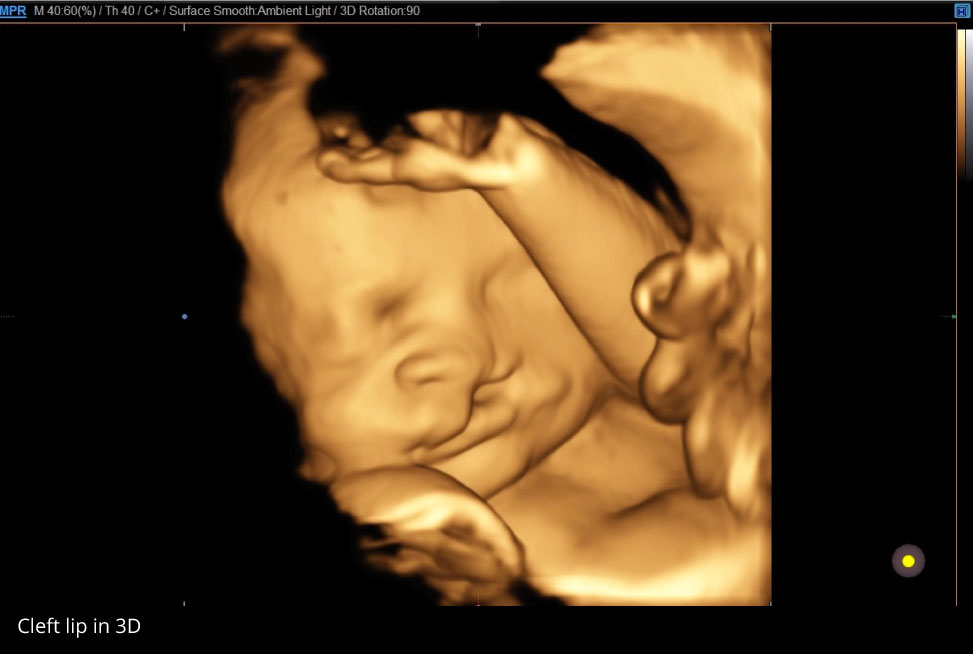

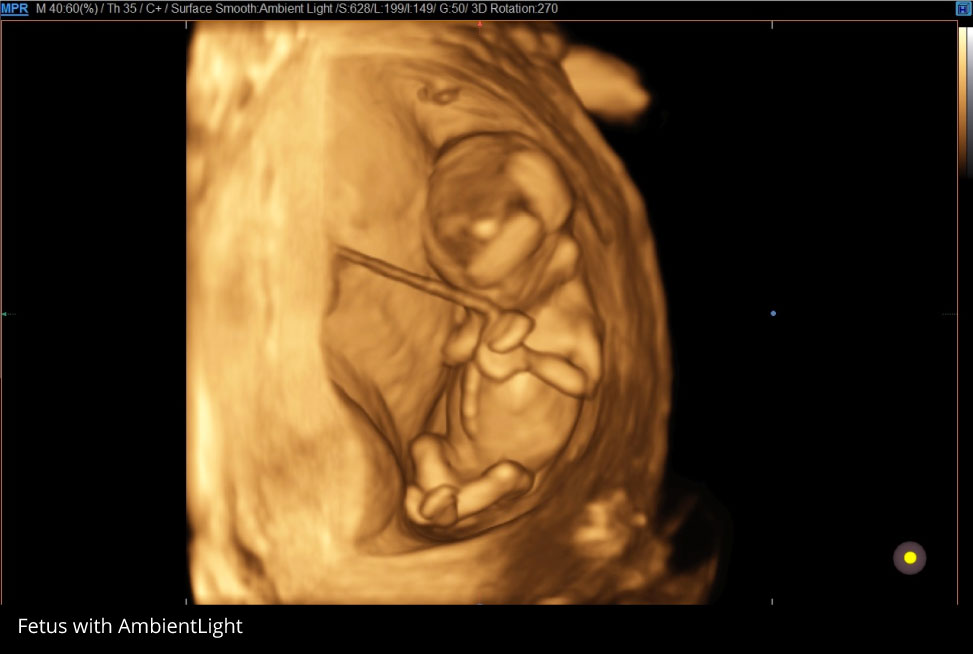

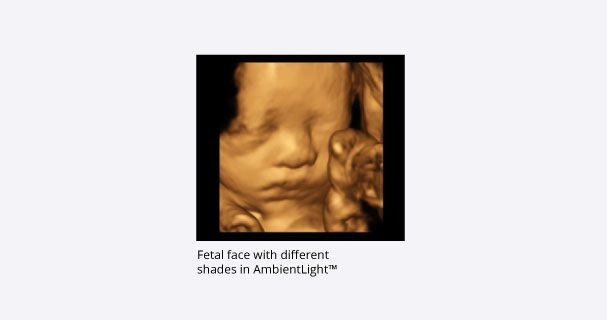

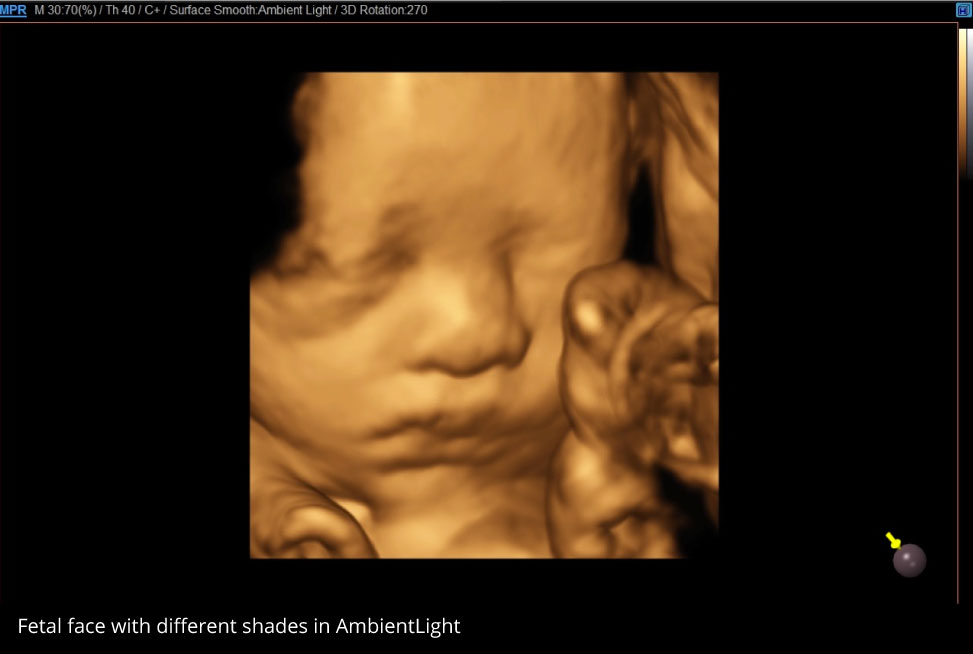

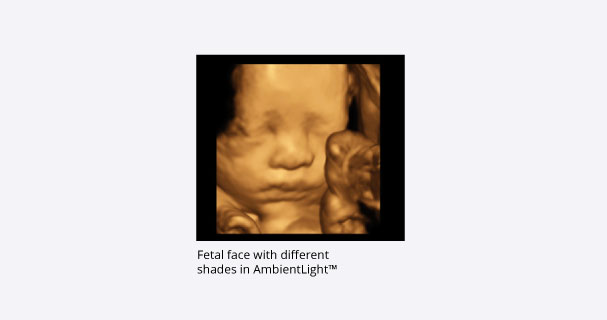

Improved structural description with AmbientLight

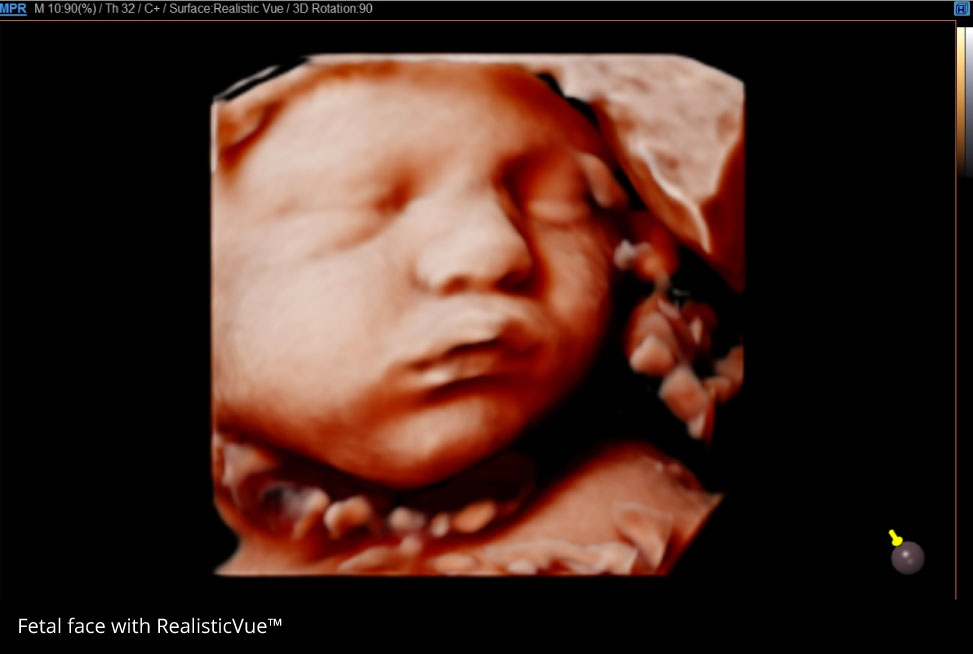

Creating intricately graduated shadows, AmbientLight improves depth expression of the surface. This 3D rendering feature is especially useful to see a fetal face or hands in detail.

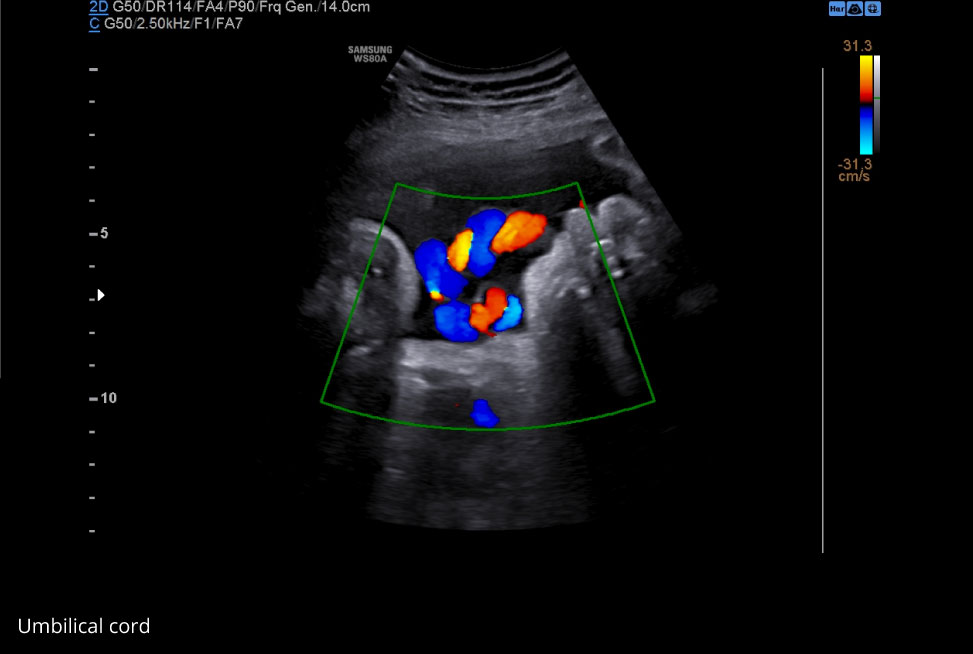

CrystalLive™ Color
CrystalLive™ Color, Samsung’s advanced blood flow imaging technologies in color mode, enhances the visualization and hemodynamics of the blood flow.
Simple screening for risk of infertility
5D Follicle™ (Follicle measurement)
5D Follicle™ identifies and measures multiple ovarian follicles for rapid assessment of follicular size and status during gynecology examinations. are slightly blurred than the actual vision.
CEUS+
CEUS+ can be used in 3D/4D for effective examination for patency of the fallopian tube and morphology of uterus and endometrium.
* ‘CEUS+ in 3D/4D’ is not the name of function. ‘CEUS+’ is the name of function.
‘CEUS+’ is not commercially available in all countries.
Intuitive fetal biometry measurements
BiometryAssist™ (Fetal biometry estimation)
A semi-automatic technology for biometric measurement,
BiometryAssistant™, enables users to measure the growth
of the fetus more quickly and with greater accuracy while
maintaining exam consistency.
5D Limb Vol.™ (Fetal weight estimation)
5D Limb Vol™. is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set. These measurements can then be used to calculate an accurate estimation of fetal weight as well as provide additional information regarding fetal nutritional status.
5D CNS+™ (Fetal brain measurement)
5D CNS+™ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamline workflow.
It includes axial, sagittal and coronal views with 9 planes.™
Enhanced diagnostic confidence
5D NT™ (Nuchal translucency measurement)
5D NT™ allows the user to obtain the true mid-sagittal plane automatically by rotating and auto-zooming the image. This advanced technology is especially useful when facing difficult cases involving fetal position.
5D Heart Color™ (Fetal heart examination)
5D Heart Color™ uses STIC volume datasets. Color Doppler sonography is demonstrated in 9 standard fetal echocardiography views in a single display.
Innovative fetal assessment
CrystalVue Flow™
CrystalVue Flow™ provides increased depth perception of vascular structures and displays vessels in a range of different imaging planes. CrystalVue Flow™ adds improved spatial precision of hemodynamic flow to morphological information and provides a deeper understanding of relational anatomy and neighboring vessels.
Highly detailed information for accurate diagnosis
E-Cervix™ (ElastoScan™ for Cervix)
E-cervix™ shows the strain ratio between the internal and external orifices of the uterus using the vibrations caused by the natural internal movements.* This technology could increase reproducibility and reduce inter-observer variance using the sum of 50 elastographic images acquired over 3.5 seconds.
* Neighboring vessels’ movements, Fetus’ movements, and others.
Neonatal / Pediatric transducers
Highly advanced transducers allow for excellent detailed resolution and more efficient scanning.
Intelligent solutions for women’s health
S-Detect™ (S-Detect™ for breast)
S-Detect™ for Breast helps standardize reporting and classification of suspicious breast lesions by incorporating BIRADS ® ATLAS* (Breast Imaging-Reporting and Data System, Atlas) into the tool. When the user selects a region of interest, S-Detect™ for Breast automatically defines the lesion boundaries, provides lexicon classification options and images export for an enhanced and streamlined workflow.
* Registered trademark of the American College of Radiology. All rights reserved.

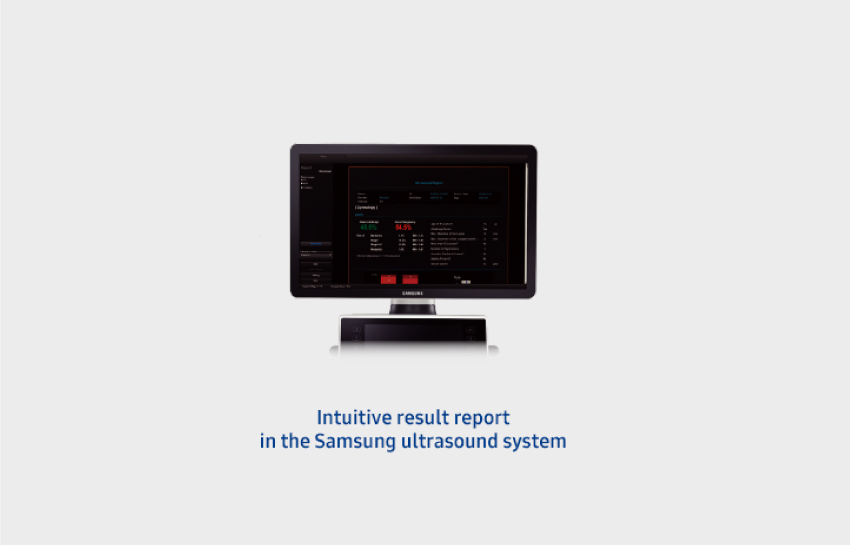

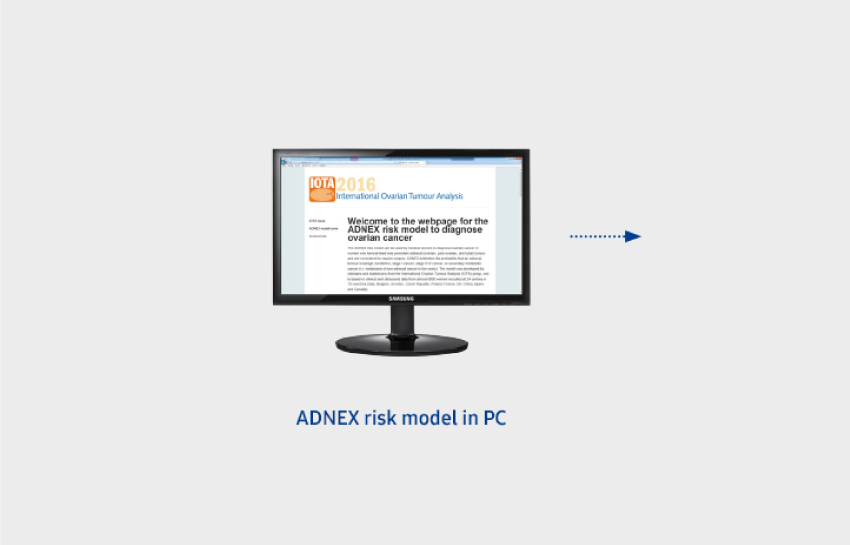

IOTA-ADNEX( Ovarian tumor classification)
Samsung has adopted the ADNEX* model for classifying ovarian tumors as proposed by the IOTA** group and named it IOTA-ADNEX
Now all ultrasound procedures, from initial scan to the final report, can be carried out using the same system. It even fills in 2 ultrasound predictors*** automatically, as soon as they are measured, and provides a report that classifies the results according to the ADNEX model 5-level classification for ovarian tumors to help users make the appropriate decisions
for managing the patient’s condition.
* Assessment of Different Neoplasias in the adneXa
** International Ovarian Tumor Analysis
*** 2 ultrasound predictors:
1) Maximal Diameter of the Lesion (mm),
2) Maximal Diameter of the Largest Solid Part (mm)
Consistent image quality

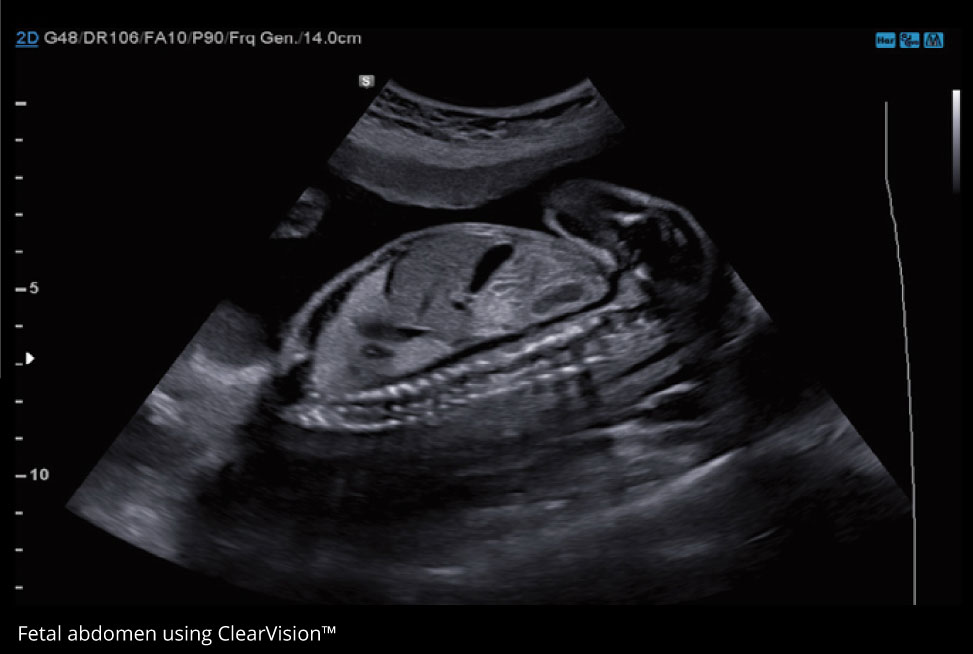

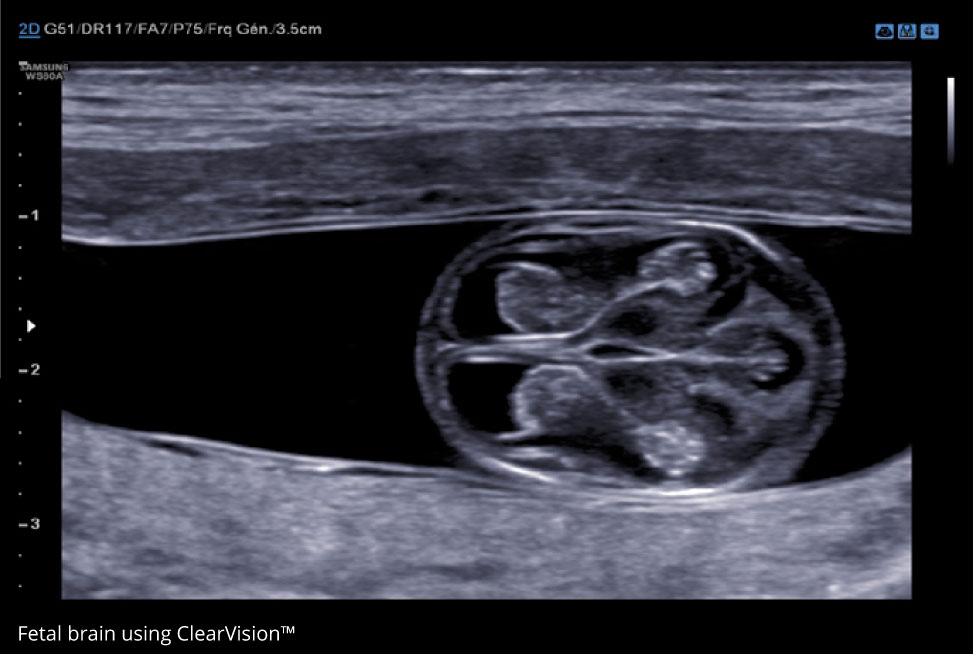

ClearVision
The noise reduction filter improves edge enhancement and creates sharper 2D images for optimal diagnostic performance. The integration of specialized Samsung technology results in a notable improvement in image quality.
S-Harmonic™
This new harmonic technology improves image clarity, near to far. Reducing signal noise, S-Harmonic provides more uniform ultrasound images.
Imaging becomes Even Better with S-Vue™ transducer
(Single Crystal Technology)
S-Vue™ transducers provide more efficient piezoelectric properties, resulting in wider bandwidths that enable better penetration and higher quality resolution on even challenging patients.
* Compared with the conventional Samsung transducers.
* The image is for illustrational purposes only and might differ from the actual performance of the device.

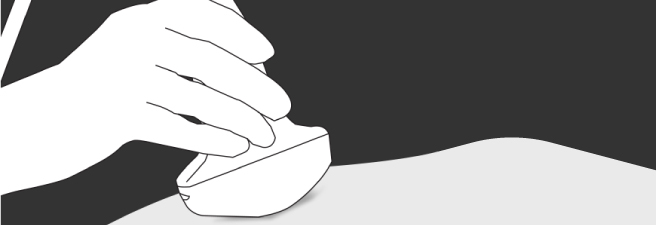

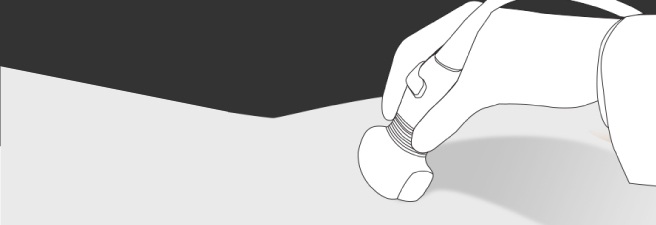

In addition, the ergonomically designed S-Vue transducer fits well in the hand and is easy to handle.

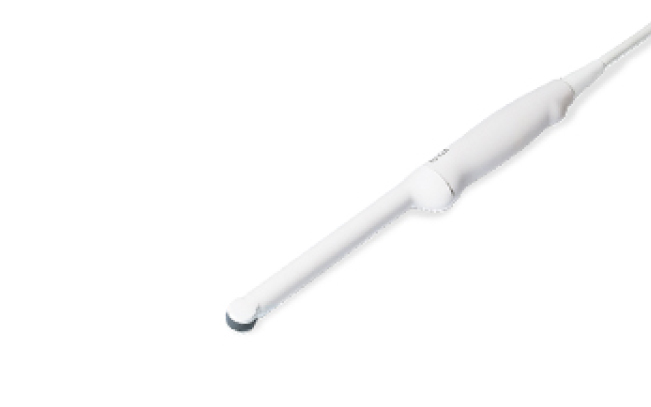

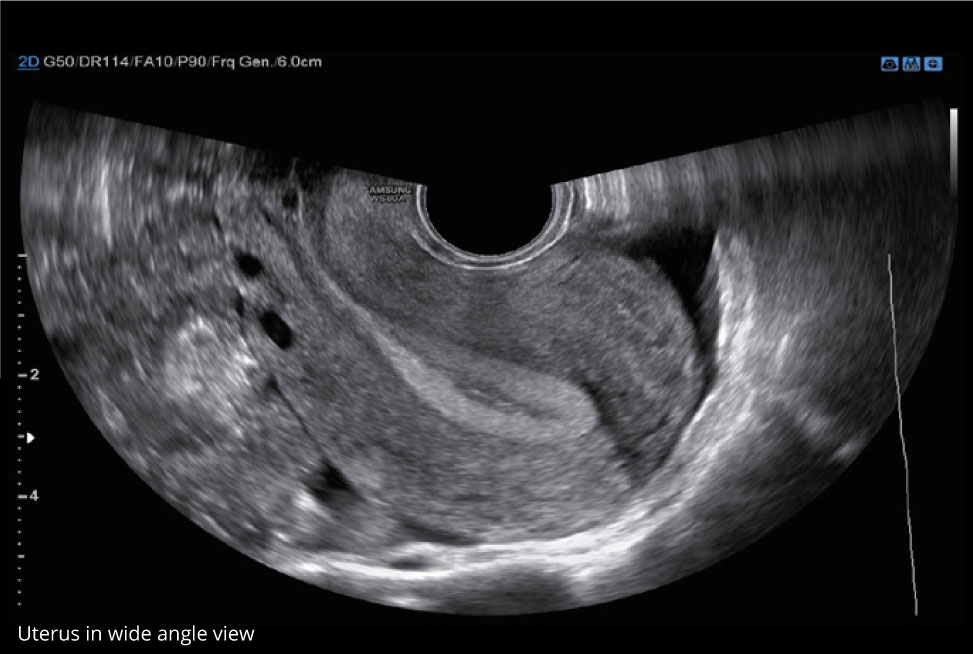

Wide angle endocavity transducer
The new wide angle endocavity transducer (E3-12A) offers a field-of-view up to 210° allowing greater visualization of pelvic anatomy. It is often possible to visualize the entire cervix and uterus in normal anatomy as well as viewing left-right symmetry in the transverse plane.
Design for your convenience
23-inch LED monitor
The 23-inch screen LED monitor offers you higher quality color image representation as well as higher resolution compared to conventional monitors.
10.1-inch Touch Screen
The 10.1-inch touch screen is highly sensitive, allowing for easy input to minimize users’ stress from repetitively pressing buttons.
Default Gel Warmer
Two-level adjustable gel warmer maintains ultrasound gel at a comfortable temperature from 30°C to 39°C, which comes as a default feature on WS80A with Elite.
Transducer Cable Hangers
Users can arrange the Transducer cables neatly on the two hangers on either side of the system.
Adjustable Control Panel
Smooth up and down lift allows you to adjust the system to the your preferred height without straining.
Additional EC Transducer Holder
The WS80A with Elite features endocavity transducer holders for convenience when performing gynecological scanning and discrete storage when not in use.

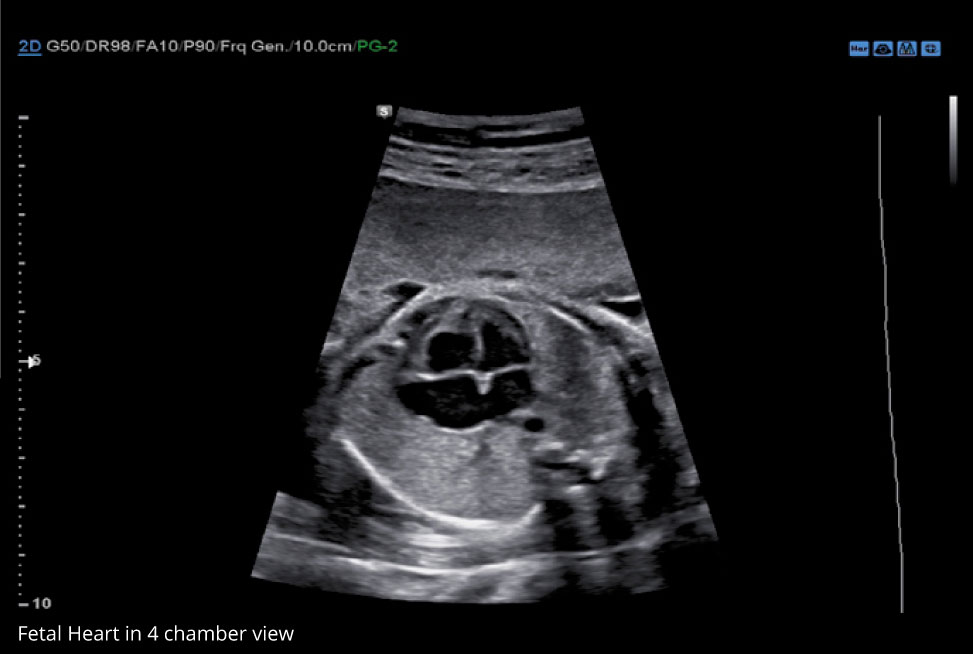

Clinical Images
Videos
Documentation
| Information of Cleaning , Disnefectant and Ultrasound Gel | Download |
|---|
Transducers
Linear array transducers

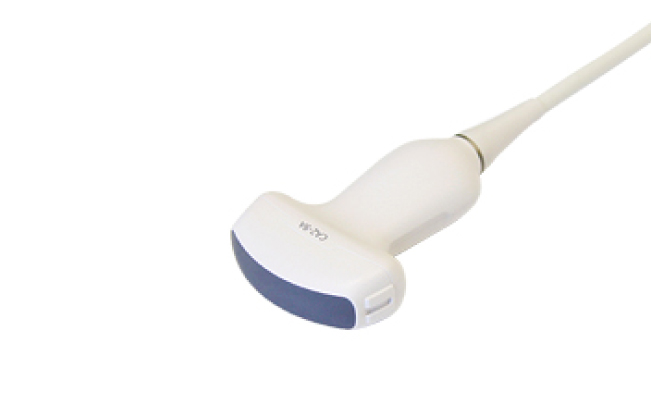

CA2-9A
Application:
Abdomen, Obstetrics, Gynecology

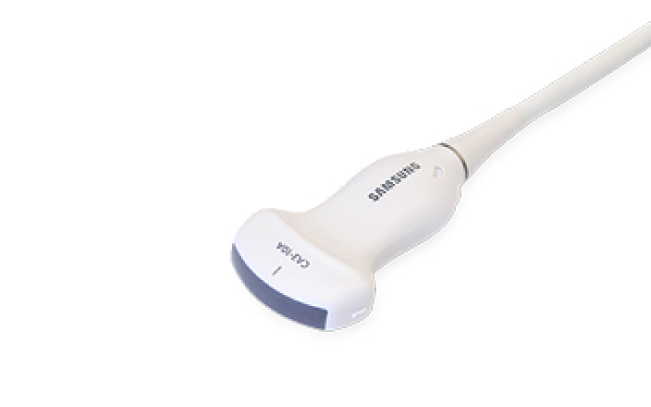

CA3-10A
Application:
Abdomen, Obstetrics, Gynecology, Pediatric

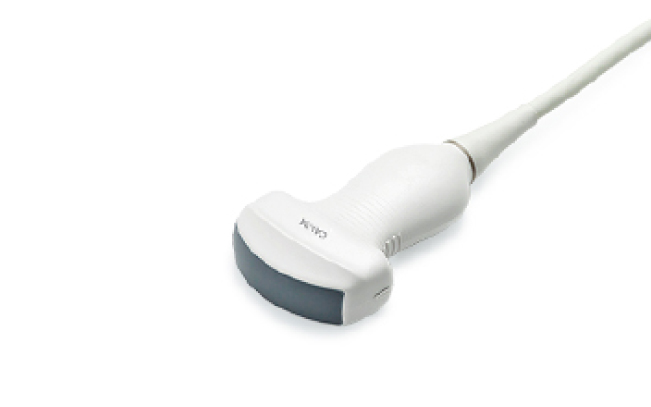

CA1-7A
Application:
Abdomen, Obstetrics, Gynecology, Musculoskeletal

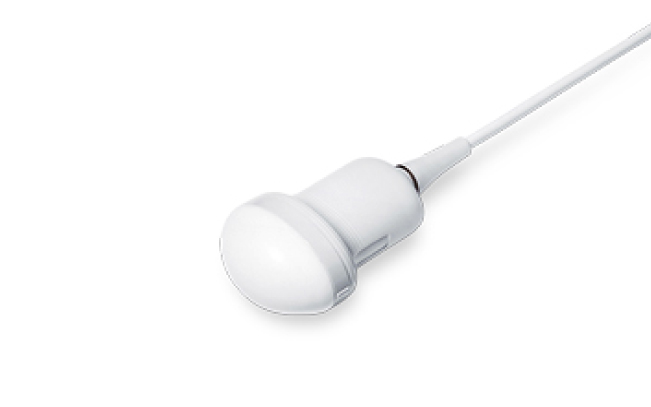

CV1-8A
Application:
Abdomen, Obstetrics, Vascular
Curved array transducers

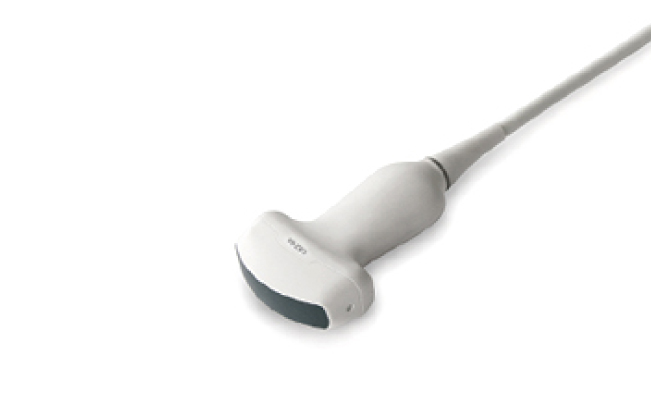

CA2-8A
Application:
Abdomen, Obstetrics, Gynecology

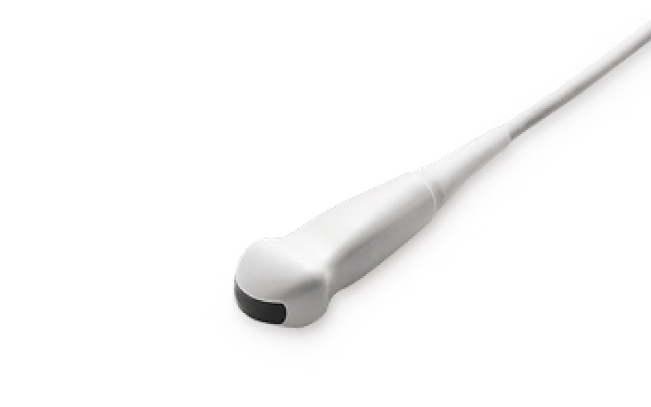

CF4-9
Application:
Pediatric, Vascular

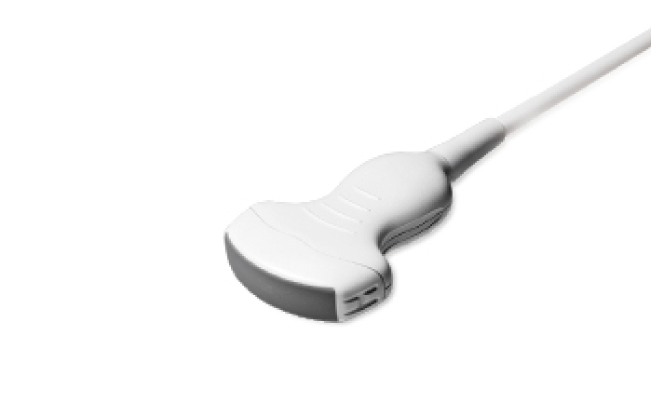

C2-6
Application:
Abdomen, Obstetrics, Gynecology

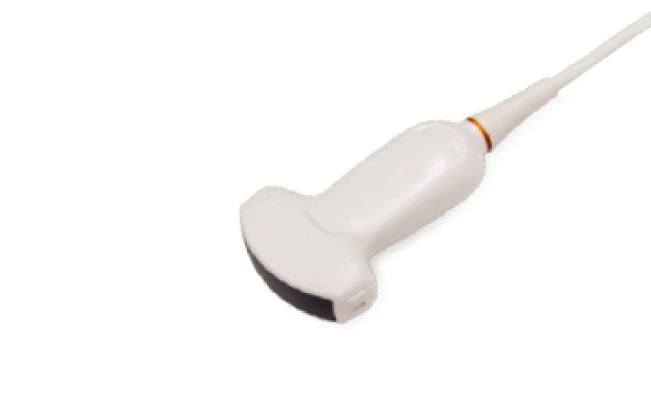

SC1-6
Application:
Abdomen, Obstetrics, Gynecology
Volume transducers

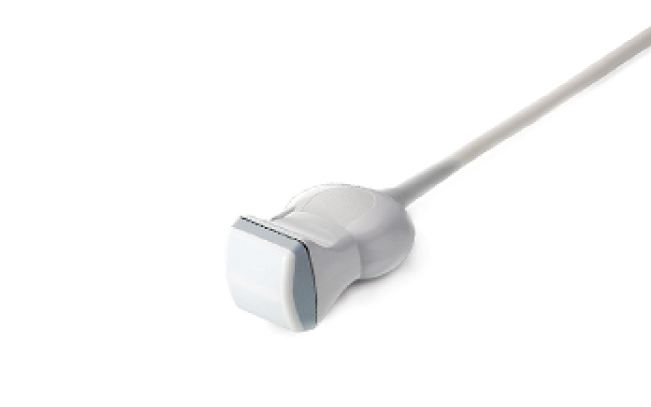

LV3-14A
Application:
Musculoskeletal, Small parts, Vascular

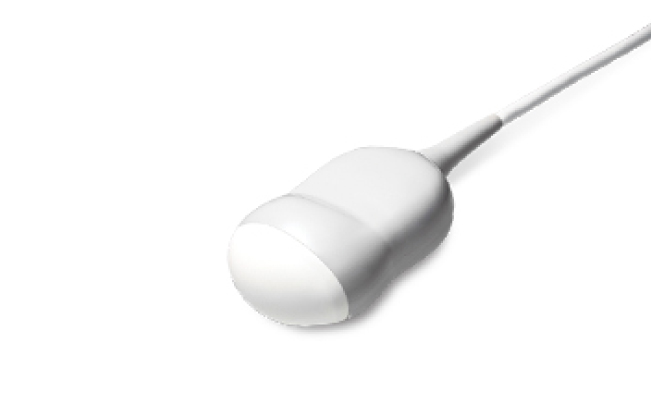

V4-8
Application:
Abdomen, Obstetrics, Gynecology

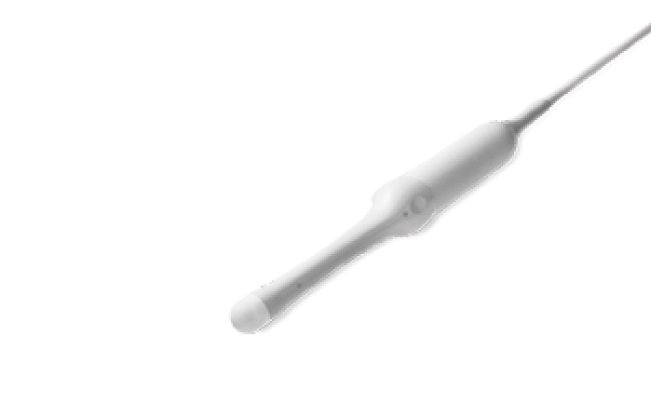

V5-9
Application:
Obstetrics, Gynecology, Urology

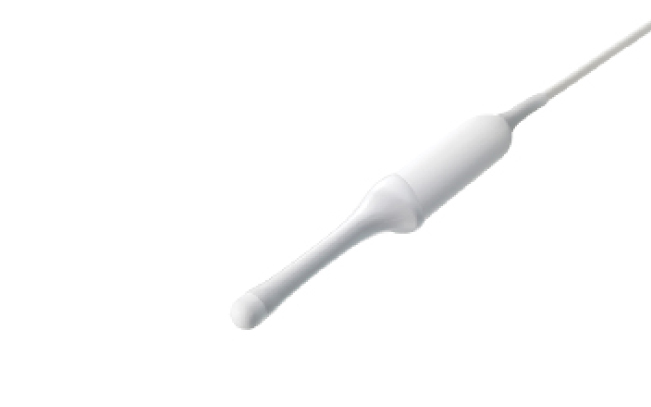

EV3-10B
Application:
Obstetrics, Gynecology, Urology
Linear array transducers

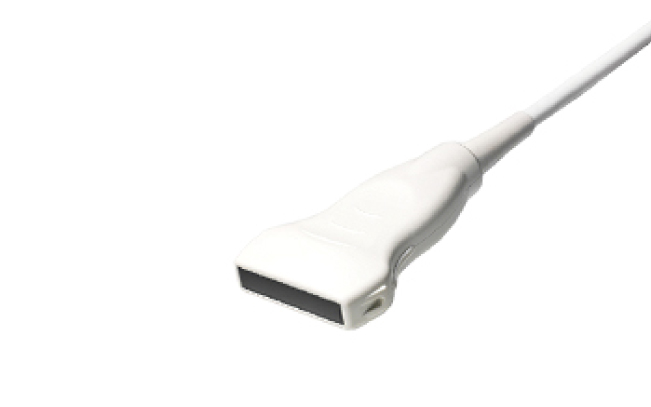

LA2-9A
Application:
Small parts, Vascular, Abdomen, Musculoskeletal

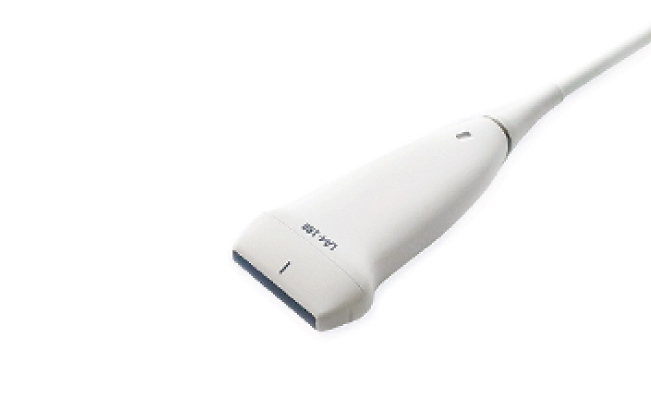

LA4-18B
Application:
Small parts, Vascular, Musculoskeletal

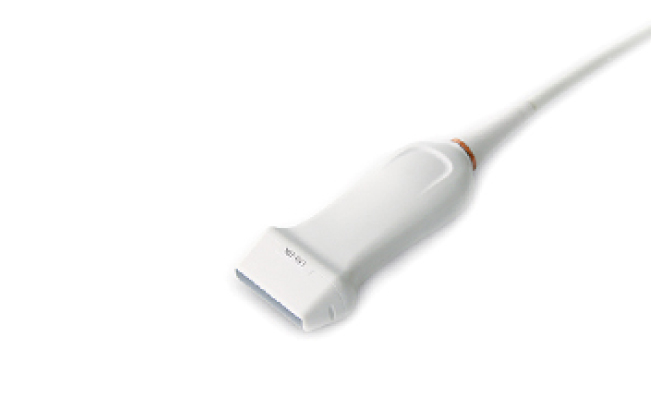

LA3-16A
Application:
Small parts, Vascular, Musculoskeletal

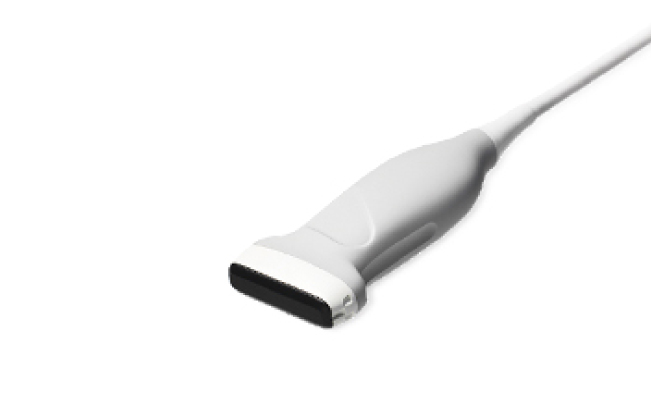

L5-13
Application:
Small parts, Vascular, Musculoskeletal

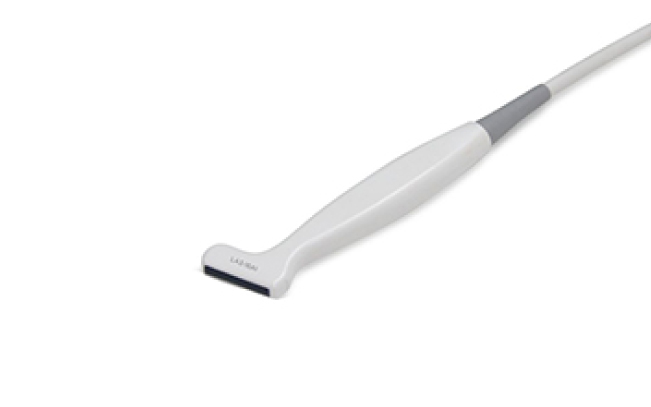

LA3-16AI
Application:
Musculoskeletal

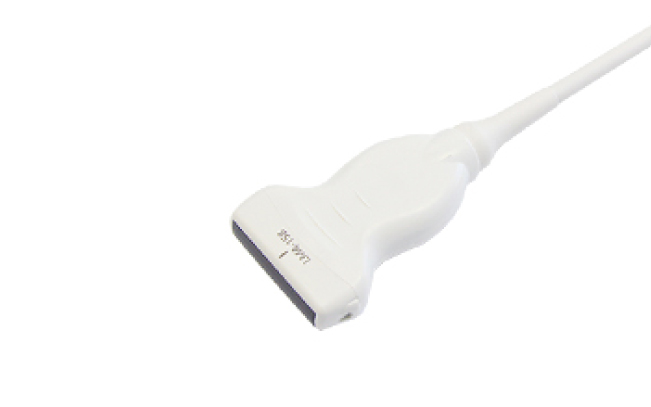

LM4-15B
Application:
Small parts

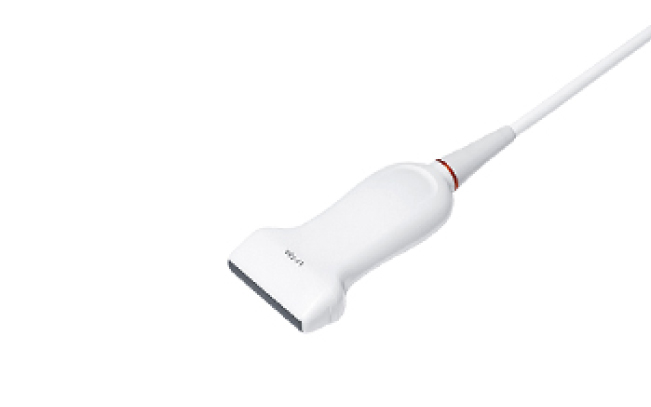

L3-12A
Application:
Small parts, Vascular, Obstetrics, Musculoskeletal, Abdomen
Endocavity transducers

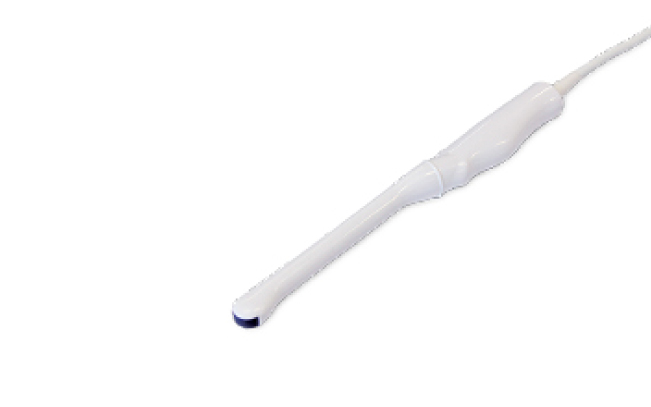

EA2-11B
Application:
Obstetrics, Gynecology, Urology

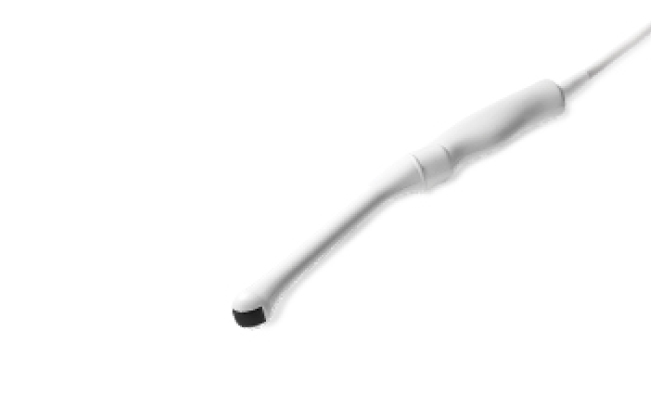

VR5-9
Application:
Obstetrics, Gynecology, Urology
E3-12A
Application:
Obstetrics, Gynecology, Urology
Phased array transducers

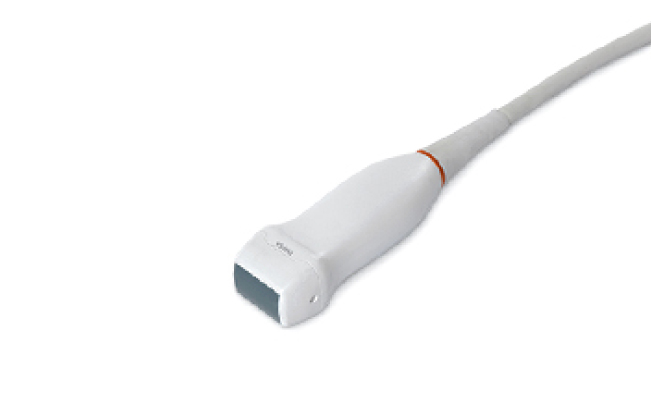

PM1-6A
Application:
Abdomen, Cardiac, TCD

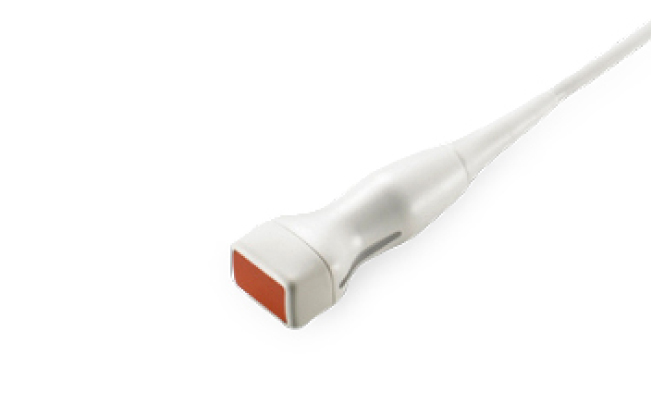

PE2-4
Application:
Abdomen, Cardiac, TCD

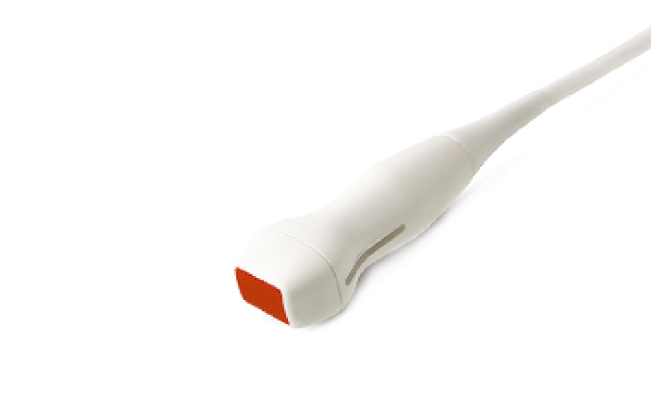

PA3-8B
Application:
Abdomen, Pediatric, TCD

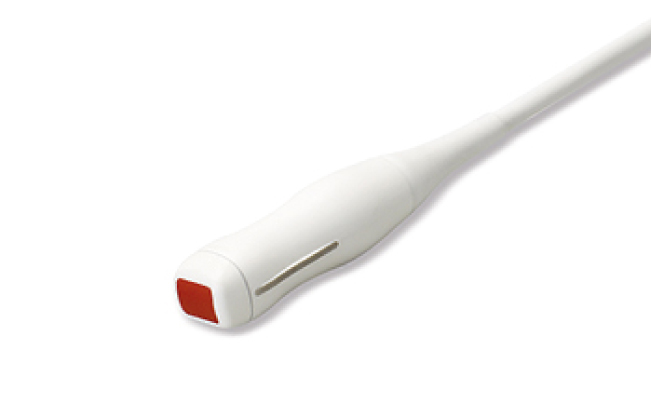

PA4-12B
Application:
Cardiac, Pediatric
