SONOST-3000
ULTRASOUND BMD
Features
01
SONOST 3000 is a portable stand-alone quantitative ultrasound (QUS) BMD with an embedded PC, colorful touch screen and thermal printer.
02
Measurement Site. Calcaneus (Heel)
Hign scan speed
03
Portable device with Winder-based embedded PC.
04
An external monitor and a keyboard can be connected through USB and VGA port
05
Easy to move and install anywhere anytime.
Easy to operate with a simple touch due to user-friendly interface
06
SONOST-3000’S algorithm for a temperature compensation function offers more accurate result by taking the nearby temperature into consideration at the time of the measurement

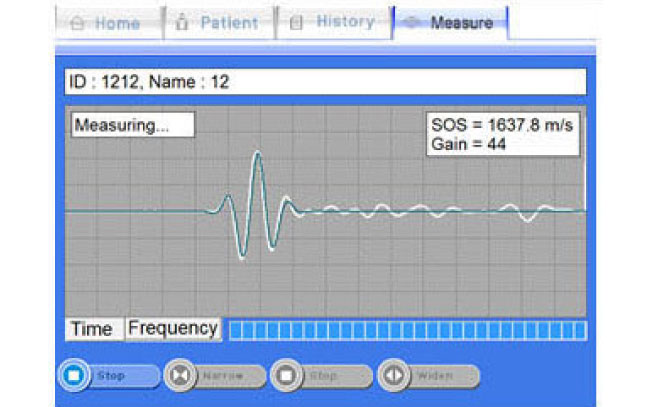

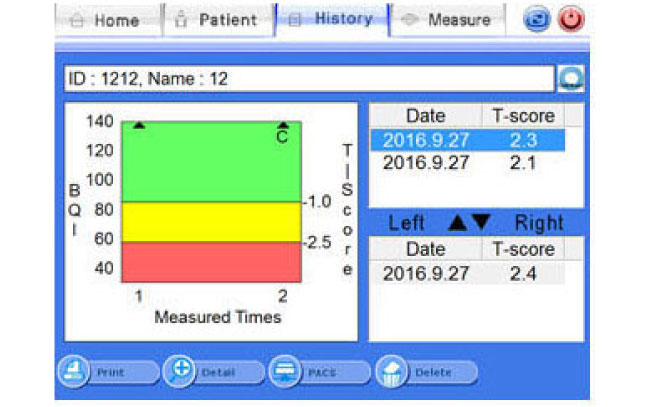

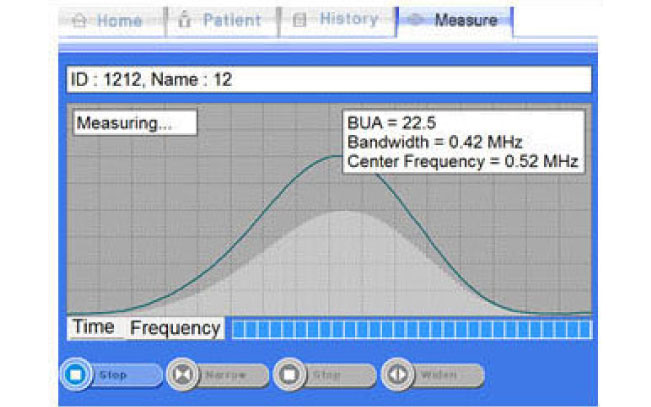

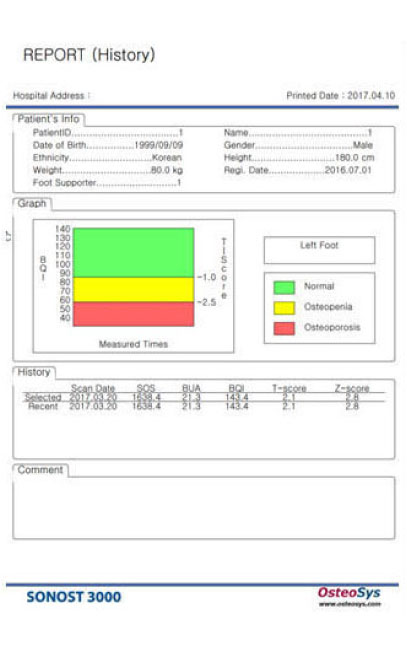

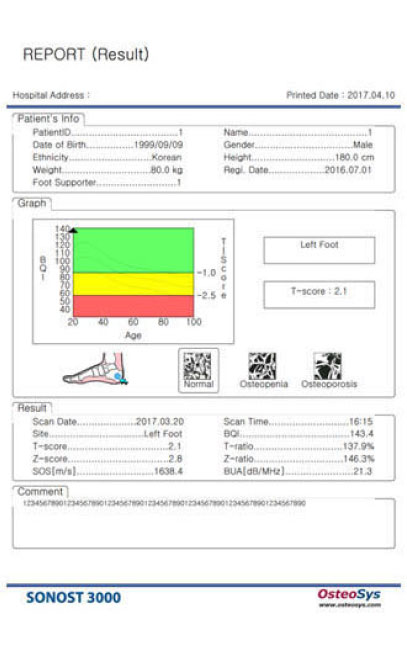

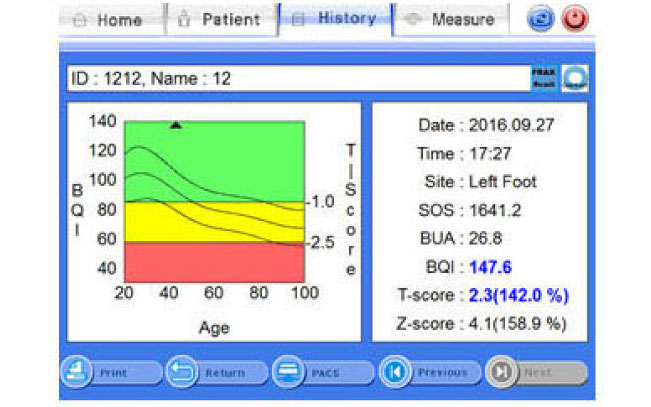

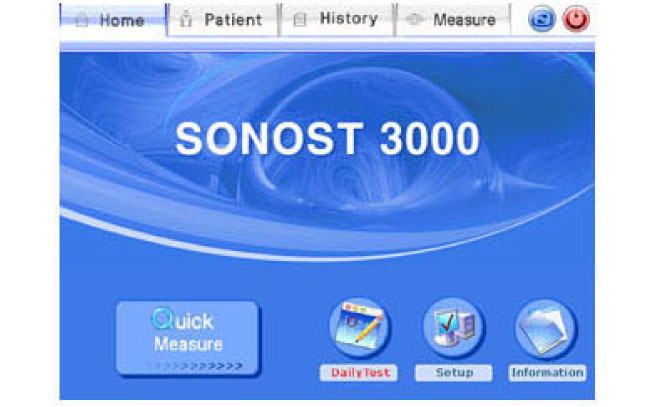

Clinic Images
Specifications
| Measurement Method | Ultrasound |
|---|---|
| Measurement Site | Calcaneus (Heel) |
| Measurement Time | 15 sec |

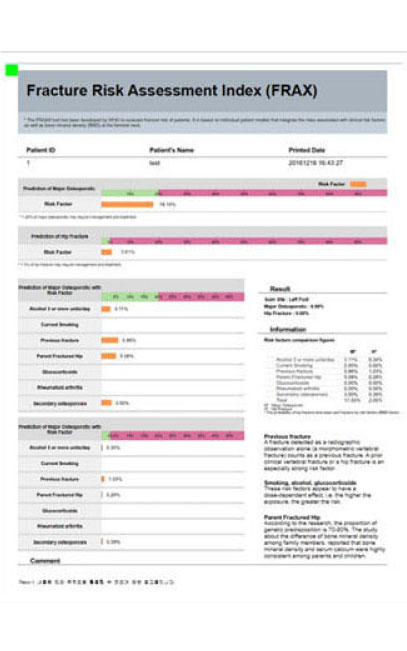

| Measured Parameter | T-score, Z-score, gal, BUA, SOS Ratio of T-score and Z-score, FRAX |
| Precision & Accucary | 1% |
| QC Check | Daily QC Phantom |
| Dimension | 615x310x386(293)mm |
| Weight | 2.6kg |
| Optional | USB Keyboard, Mouse, External printer, Monitor |
