ProxiDiagnost N90

This system combines high-end, nearby fluoroscopy and digital radiography into one DRF unit , designed to broaden clinical capacity and increase room utilization.

Overview

Features

Cost effective

Facilitate high room utilization with the ability to perform high-quality radiography as well as fluoroscopy applications in one room. You can further lower the costs of ownership by sharing SkyPlate wireless detectors with other compatible Philips systems.

Superb image quality

Flat detector technology provides wide body coverage and distortion free images. Image quality is further enhanced with advanced de-noising, brightness stabilization, and real-time fluoroscopy image processing using Philips dynamic UNIQUE. Fluoroscopy images can also be recorded at any time to document findings.

Intuitive

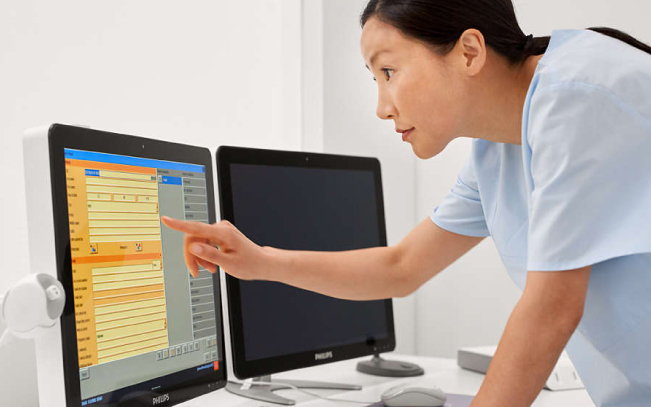

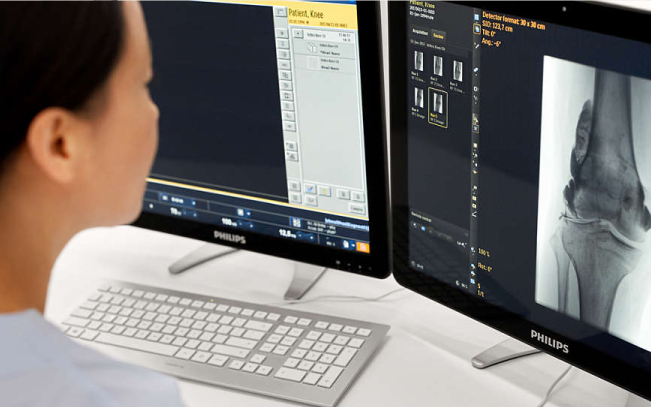

Philips Eleva user interface allows a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.

Dose management

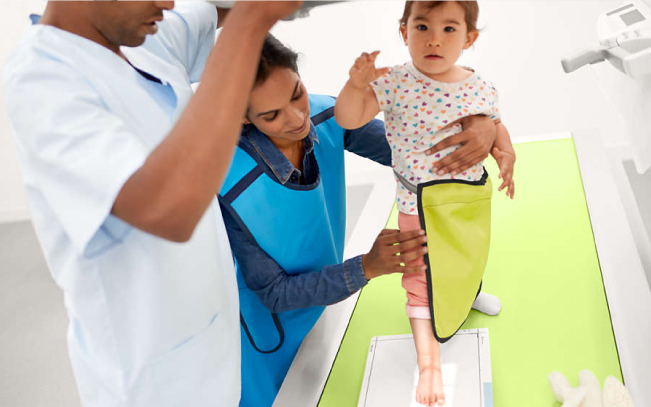

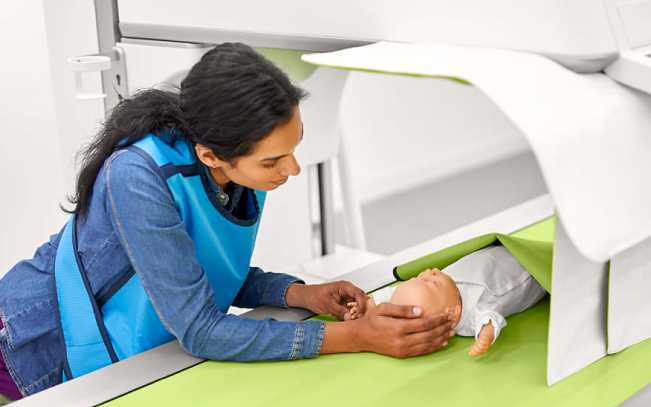

Comprehensive dose management features like Grid Controlled Fluoroscopy (GCF), Intelligent Exposure (IQX), in-pulse control, automatic filters and collimation on last image hold (LIH), benefit both patient and staff and is perfectly suited for pediatrics.

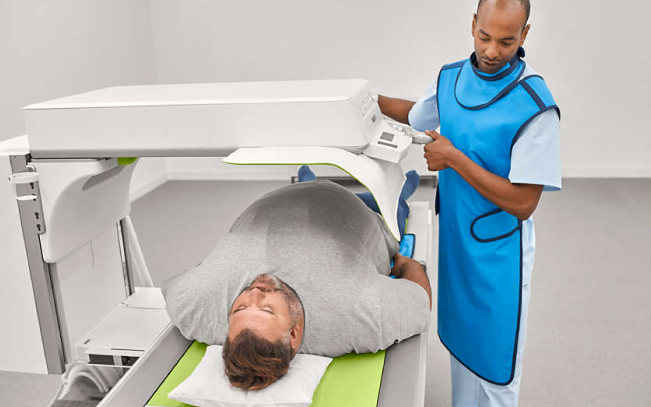

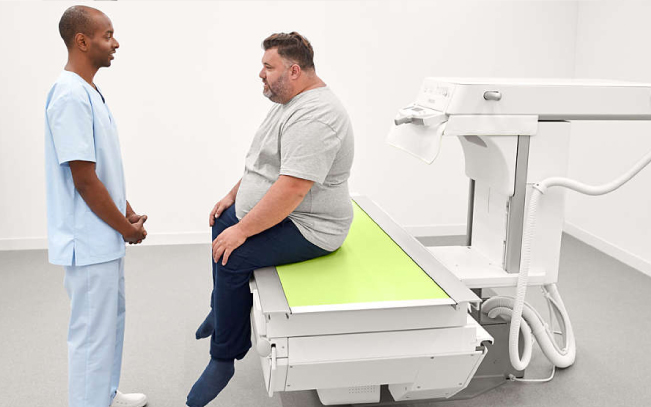

Bariatrics

With ProcedureCards, you can simplify and standardize system set-up for all cases, from routine to mixed procedures. For example, the system automatically selects the relevant ProcedureCard(s) based on the RIS/HIS/CIS code of the scheduled procedure. Presets (e.g. most-frequently used, default protocols and user-specified settings) facilitates you in increasing exam consistency.

Specifications

Table Geometry

Weight capacity Static	300 kg (660 lbs)
Weight capacity Tilting	250 kg (550 lbs)
Weight capacity All movements	185 kg (407 lbs)
Footrest weight capacity	250 kg (550 lbs)

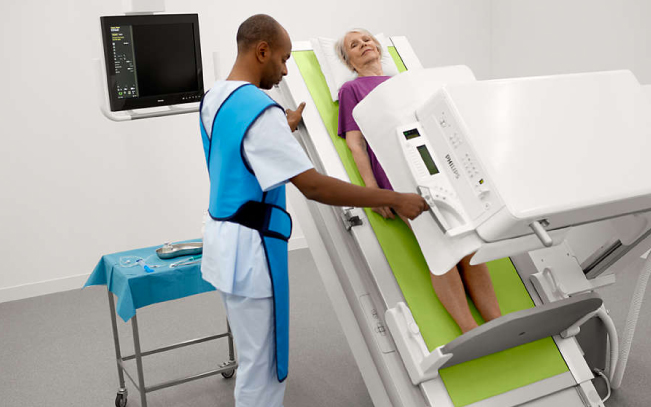

Table tilt angle	+90° – -20°, optional -30°/-45°/-85°
Tabletop	200 cm x 80 cm (78.7″ x 31.5″)
Tabletop to detector housing clearance	25 – 60 cm (9.8″ – 23.6″)
Tabletop height	83.3 cm (32.8″)
Detector for table Bucky	Fixed 43 cm x 43 cm (17″ x 17″) or SkyPlate 35 cm x 43 cm (14″ x 17″) or cassette

Dynamic Flat Detector

Type	Cesium Iodide (CsI)
Detector size	43 cm x 43 cm (17″ x 17″)
Active area	42 cm x 42.5 cm (16.5″ x 16.7″)
Pixel size	148 μm
Image matrix size	2880 pixel x 2881 pixel
Acquisition mode continuous fluoroscopy	Up to 30 fps
Acquisition mode pulsed fluoroscopy with Grid Controlled Fluoroscopy (GCF)	0.5 – 30 fps
Acquisition mode pulsed fluoroscopy with Pulsed Controlled Fluoroscopy (PCF)	Up to 6 fps

Generator

Power	65 kW, 80 kW optional
Exposure Techniques	Manual, Automatic, Intelligent Exposure (IQX) in-pulse control , Automatic kV reduction
Fluoroscopy Techniques	In-pulse control with Grid Controlled Fluoroscopy (GCF) or Pulsed Controlled Fluoroscopy (PCF)
Tube voltage exposure	40 – 150 kV
Tube voltage fluoroscopy	40 – 125 kV

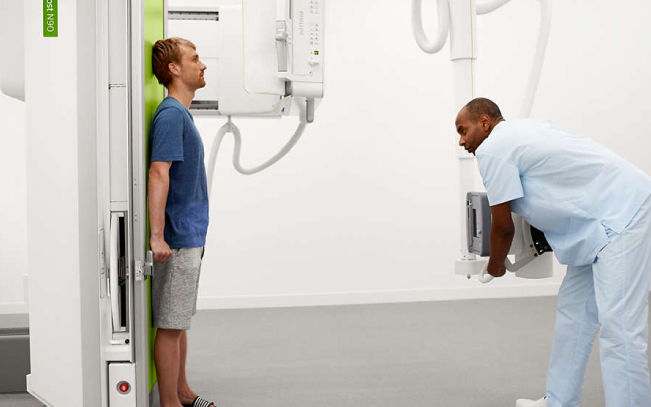

Vertical Stand (option)

Vertical travel (motorized)	30 – 180 cm (11.8 – 5’11”)
Detector	Fixed 43 cm x 43 cm (17″ x 17″) or SkyPlate 35 cm x 43 cm (14″ x 17″) or cassette
Tilting (motorized)	Optional, -20° – +90°

Ceiling Suspension CSM (option)

Type	Four-part telescopic column
Ceiling height at SID 110 cm (44″)	2.83 – 3.21 m (8′ 8.3″ – 10′ 5.9″)
Collimator	Motorized, automatic

SkyPlate Detector Small (option)

Type	Digital CsI (Cesium Iodide) flat detector
Detector Size	24 cm x 30 cm (app. 10″ x 12″)
Active area	22.2 cm x 28.4 cm (8.7″ x 11.2″)
Image Matrix Size	1500 pixel x 1920 pixel

SkyPlate Detector Large (option)

Type	Digital CsI (Cesium Iodide) flat detector
Detector Size	35 cm x 43 cm (14″ x 17″)
Active area	34.48 cm x 42.12 cm (13.6″ x 16.6″)
Image Matrix Size	2330 pixel x 2846 pixel
