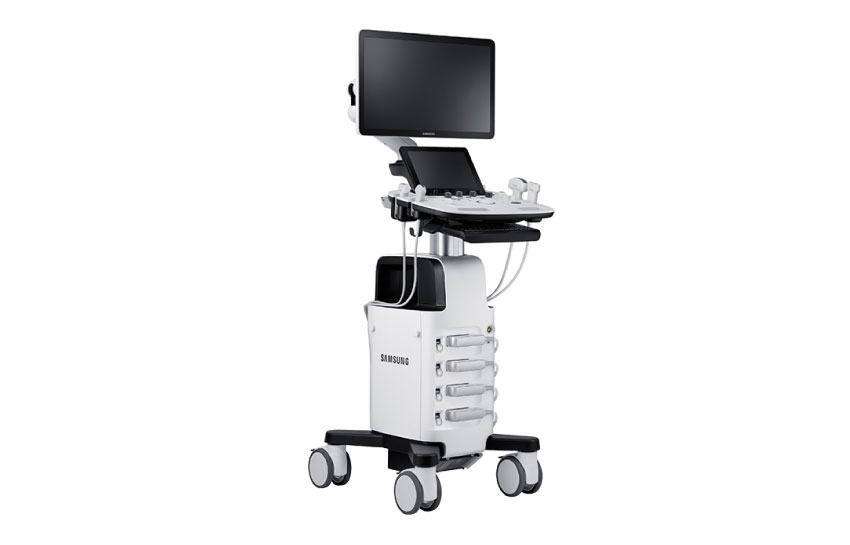

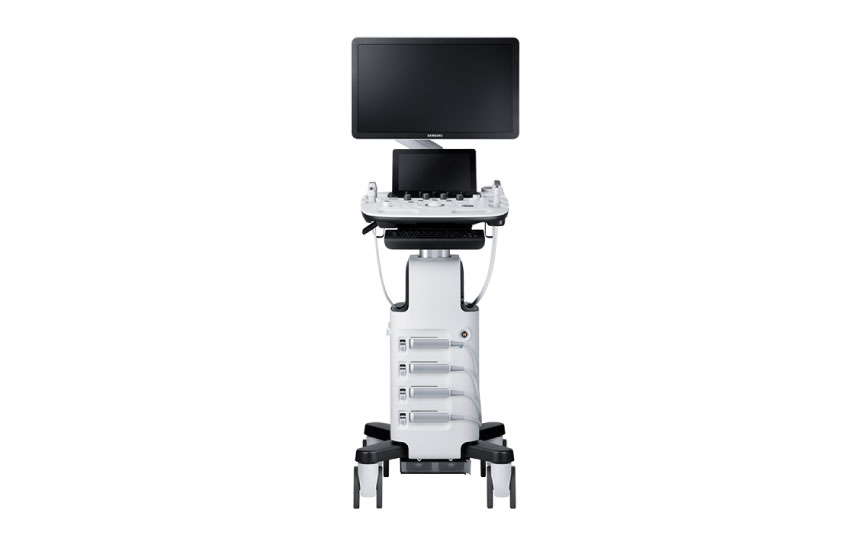

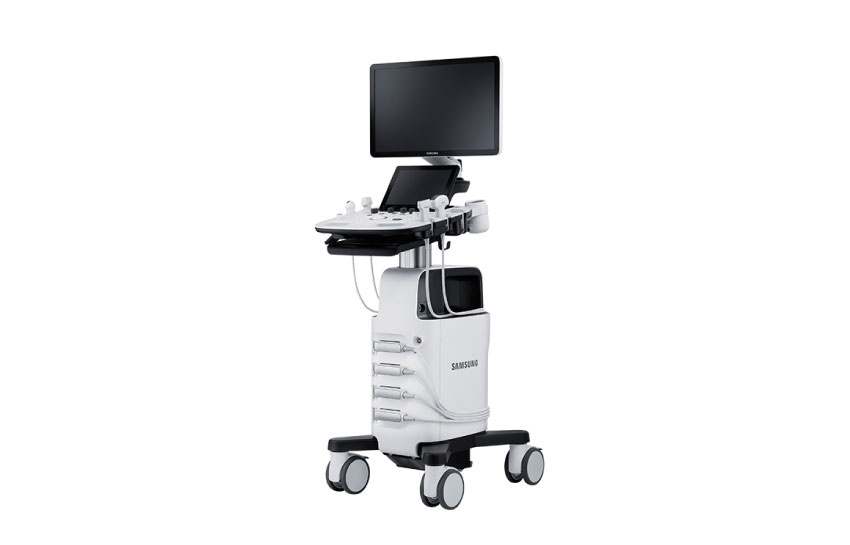

HS40

Features

Tools for optimized care

RealisticVue™

RealisticVue™ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.

3D XI

Comprised of a suite of outstanding imaging applications (Multi-Slice View, Oblique View, and XI VOCAL), 3D XI offers precise control over 3D/4D volume data manipulation to improve diagnostic accuracy.

BiometryAssist™

A semi-automatic technology for biometric measurement, BiometryAssist™, enables users to measure the growth of the fetus more quickly and with greater accuracy while maintaining exam consistency.

E-Strain™

E-Strain™ is designed to enable quick and easy calculation of the strain ratio between two regions of interest for day-to-day practice. Simply by setting the two targets, you can receive accurate, onsistent results and make informed decisions in many types of diagnostic procedures.

5D NT™ (Nuchal translucency measurement)

5D NT™ provides the midsagittal plane view automatically by rotating and magnifying the images when measuring the nuchal translucency (NT) of the fetus in early weeks.

5D Follicle (Follicle measurement)

5D Follicle identifies and measures multiple ovarian follicles for rapid assessment of follicular size and status during gynecology examinations.

Extraordinary image quality

S-Harmonic™

S-Harmonic™ reduces signal noise and provides more uniform ultrasound images by improving near to far image clarity.

ClearVision

ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images. It reduces halo artifact that occurs when the tissue contour is enhanced, and removes noises on the tissue boundaries.

MultiVision

MultiVision controls ultrasound beam electronically by steering, and compounds many scan lines for better image. MultiVision provides remarkable spatial and contrast resolution with even greater artifact suppression than ever before.

Streamlined workflow

QuickPreset

With one touch, the user can select the most common transducer and preset combinations. QuickPreset maximizes efficiency to make a full day of scanning simple and easy.

EzExam+™

EzExam+™ enables you to build or use a predefined protocol, and assign protocols for examinations that are regularly performed in the hospital in order to reduce the number of steps that you have to go through. For fetus diagnosis, in particular, you can arrange the examination order according to the fetus position using the touchscreen, and automatically apply the BodyMarker, Annotation, Measurement, etc.

BatteryAssist™

BatteryAssist™ provides the system with battery power. This serves two important purposes.
Firstly, it enables users to perform scans and transport the ultrasound system to other locations in environments where AC power may not be available temporarily.
Secondly, it reduces boot-up time by using sleep mode without having to shut down or restart the system.

User-friendly design

21.5 inch LCD monitor (LED backlight unit)

The HS40 features a 21.5 inch LCD monitor (LED backlight unit), delivering excellent contrast resolution, image clarity and vibrant color in any lighting condition.

10.1-inch touchscreen

The Samsung 10.1-inch touchscreen is highly sensitive, allowing for an efficient interaction during the examination.

Solid State Drive (SSD)

The HS40 uses Samsung’s advanced solid state drives. These stable and dependable drives allow faster bootup, better frame rates, and fast processing speeds.

Rear tray

HS40’s rear tray provides extra storage space for the endocavity transducer and other items.

Gel warmer

Two-level adjustable gel warmer maintains ultrasound gel at a comfortable temperature.

Low noise

This exceptionally quiet device allows physical exams to be performed, including auscultation, while the ultrasound system is turned on.

Height-adjustable operating panel

Adjust the operating panel to your preferred height without straining, thanks to the smooth upward and downward motion of the gas lift.

Endocavity transducer holder

HS40 features an endocavity transducer holder, side-mounted on the console for convenience when performing gynecological scanning.

Articulating monitor arm

With a wide range of motion, the fully articulating monitor arm adapts to your changing needs.

Side storage

The side storage is ideal for storing a tablet, patient charts, or other items that you need to keep close at hand.

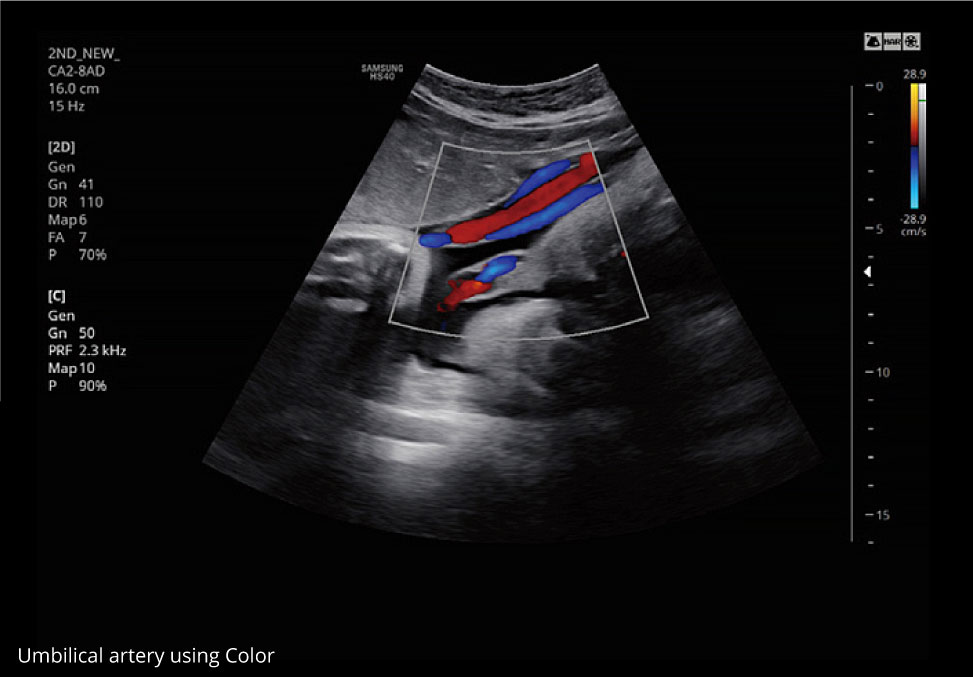

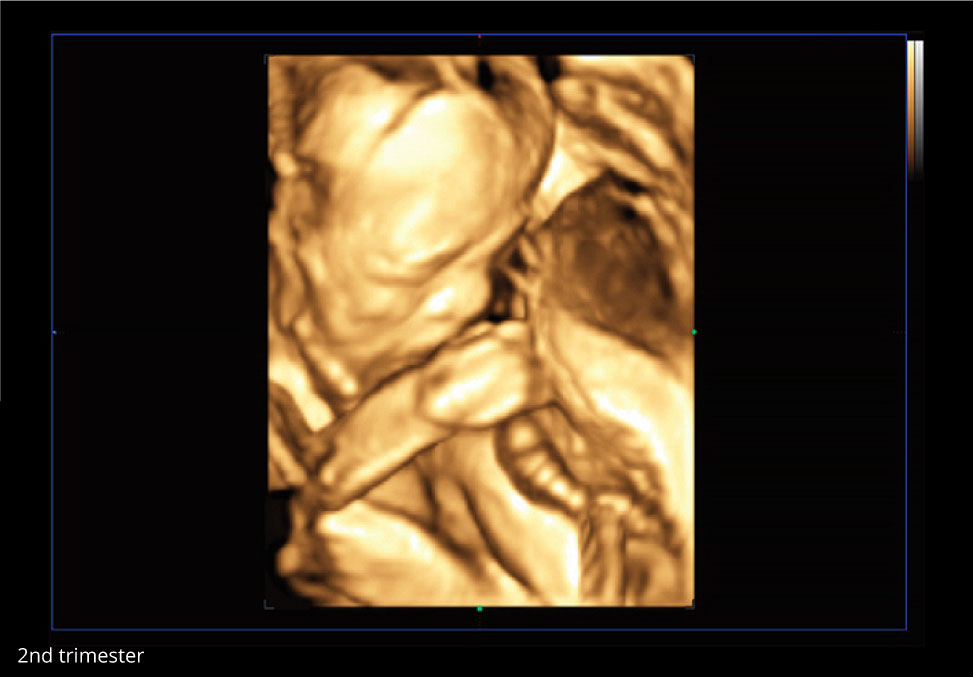

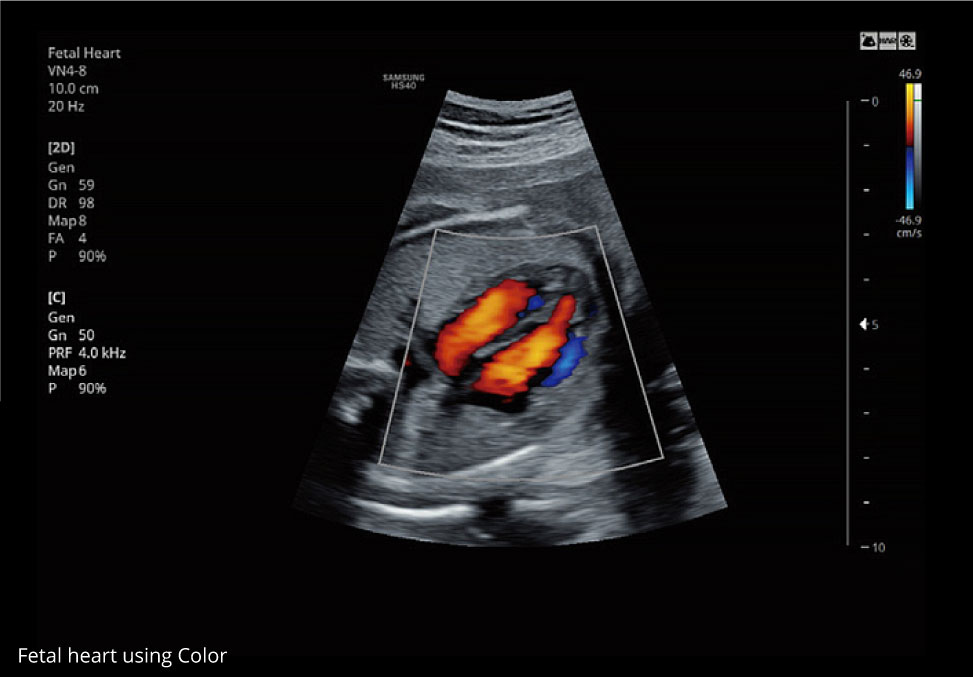

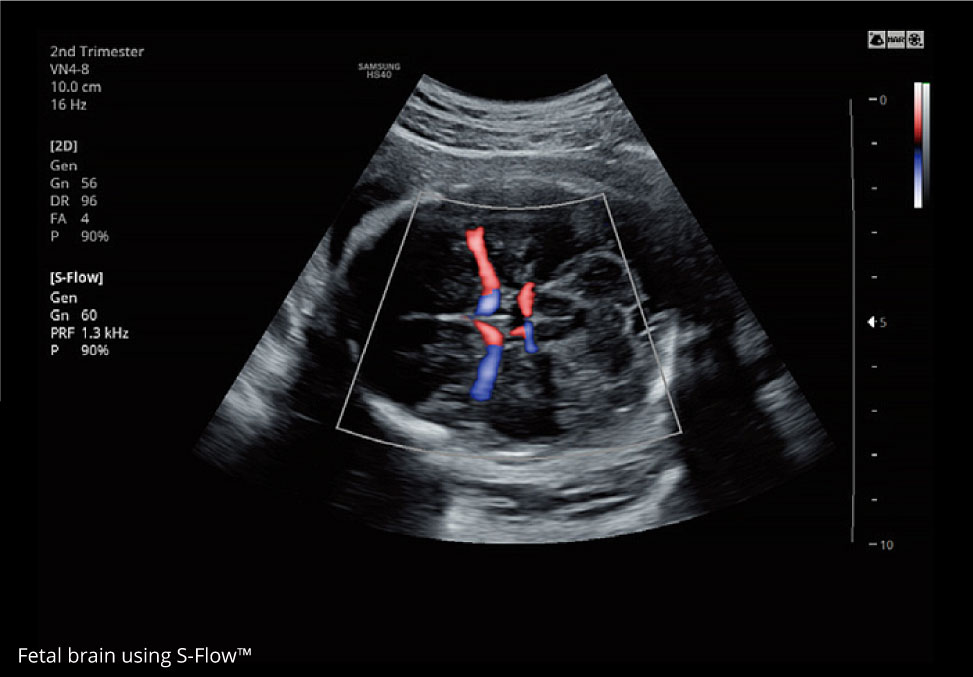

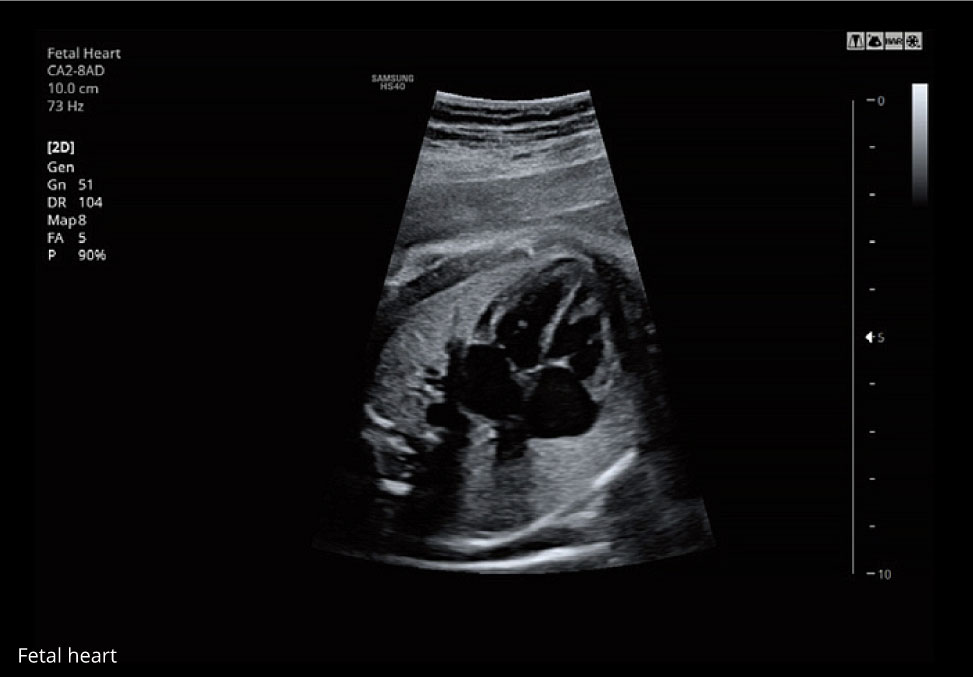

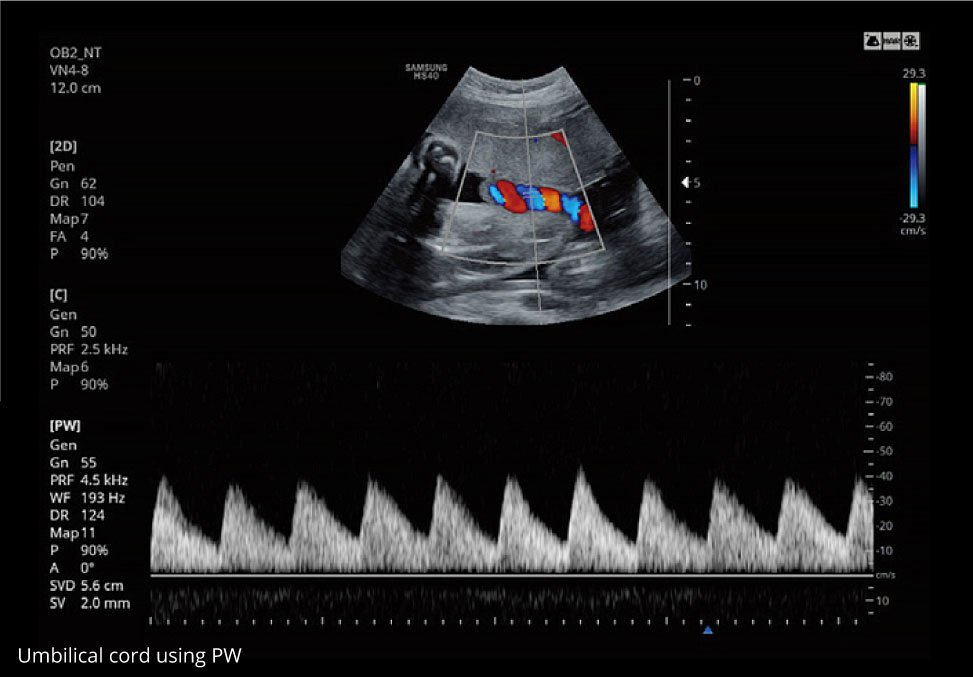

Clinical Images

Images

Documentation

Information of Cleaning , Disnefectant and Ultrasound Gel Download

Transducers

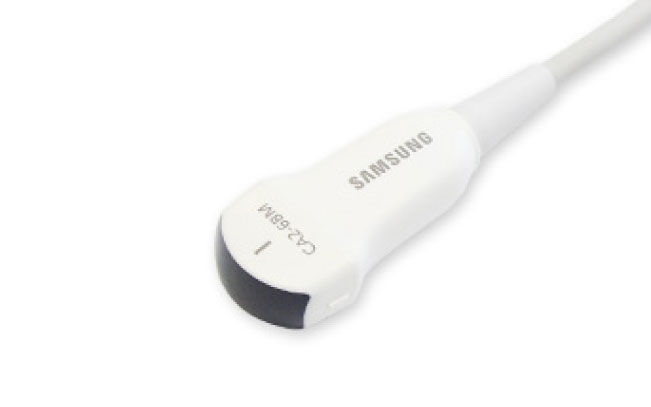

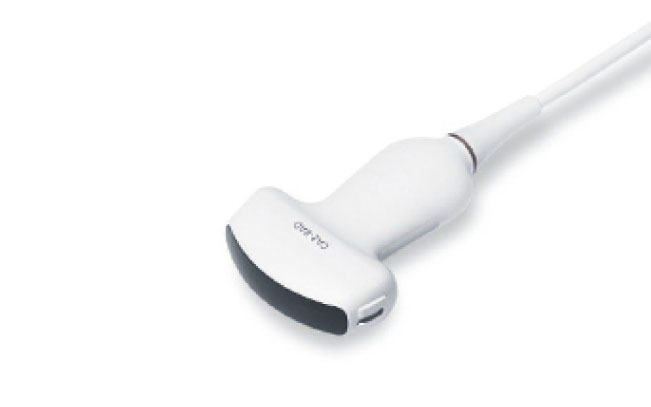

Curved array transducers

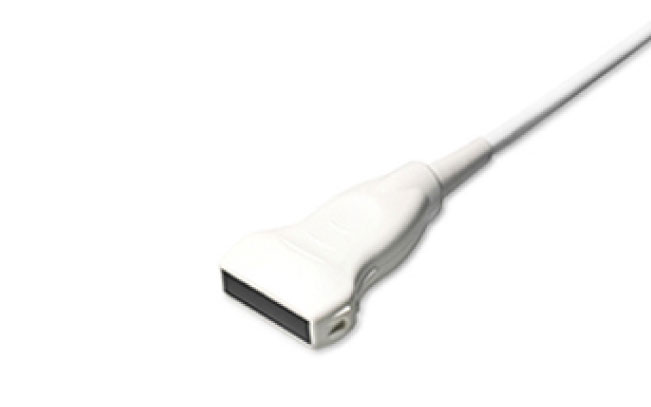

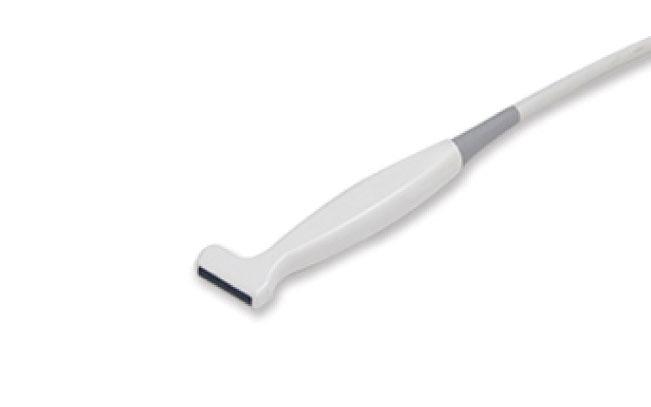

Linear array transducers

Volume transducers

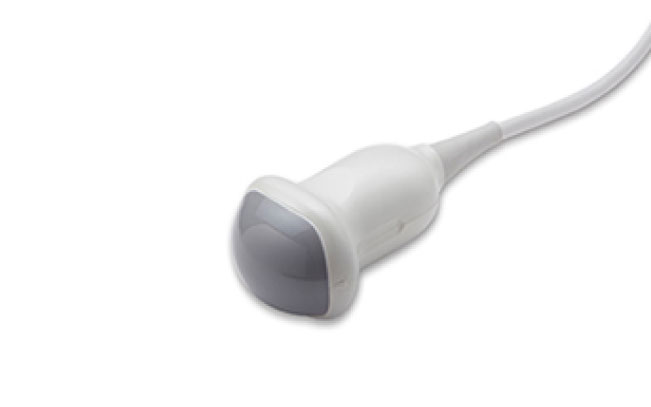

VN4-8

Application:
Abdomen, Obstetrics, Gynecology

V5-9

Application:
Obstetrics, Gynecology, Urology

Phased array transducers

PN2-4

Application:
Abdomen, Cardiac, Vascular

SP3-8

Application:
Abdomen, Pediatric, Cardiac

CW transducers

DP2B

Application:
Cardiac

DP8B

Application:
Cardiac, Vascular

Endo-cavity transducers

EVN4-9

Application:
Obstetrics, Gynecology, Urology

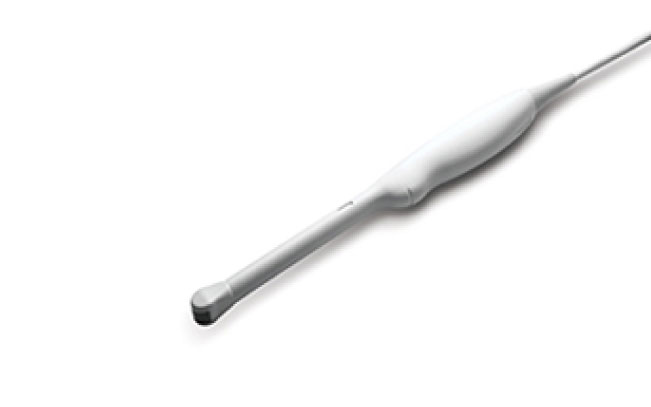

ER4-9

Application:
Obstetrics, Gynecology, Urology
