HM70A with Plus
Deliver excellence wherever you go
The HM70A with Plus helps make ultrasound exams and ultrasound-guided procedures more accurate and streamlined with its image performance and efficient, easy-to-use features.
Intuitive Guidance
See more intuitively with HM70A with Plus. With intelligent solution such as NeedlePilot™, the HM70A with Plus brings a new level of productivity to the clinical environment.
Features
Excellent image quality
S-Vue™ transducers
(CA1-7AD, CA2-9AD)
The S-Vue transducers provide broader bandwidth and higher sensitivity over conventional Samsung transducers. They enable higher resolution at depth thereby providing improved image quality even with technically challenging patients.
ClearVision
ClearVision eliminates unwanted speckle noise, providing excellent image clavrity.
MultiVision™
MultiVision™ compounds many scan lines to provide remarkable spatial and contrast resolution
S-Flow™

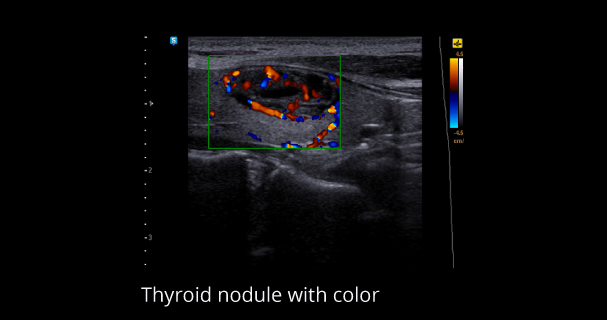

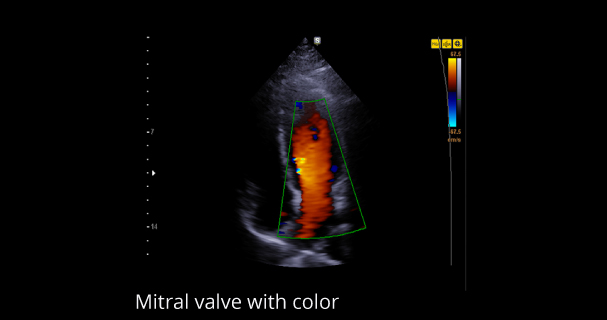

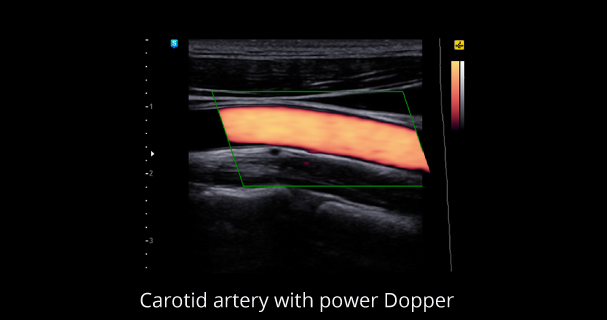

S-Flow™ is a sensitive color Doppler that can reveal peripheral blood vessels even when blood flow detection is difficult.
Excellent Point-of-Care solutions
NeedlePilot™
NeedlePilot™ uses magnetized needle and magnetic sensors embedded in the transducer to provide onscreen color-coded graphics that clearly identify the correct needle plane. This makes it simple to identify the correct needle trajectory to reach the target anatomy, making NeedlePilot™ useful for both In-Plane and Out-of-Plane approaches.

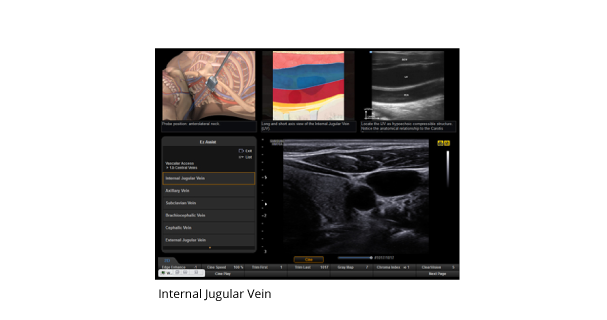

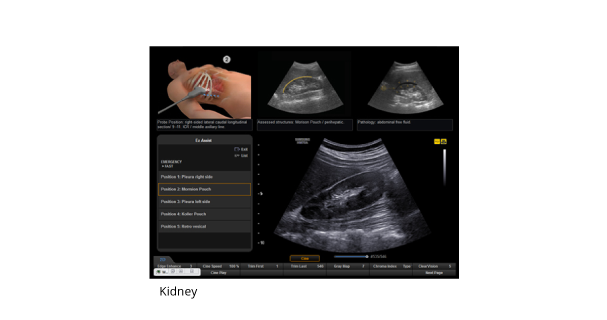

EzAssist™
As a reference tool for plane scanning, EzAssist™ has multiple clinical applications during live scanning. This allows clinicians to practice procedures using valuable reference materials such as clinical reference images and animation.
Qpath™
The HM70A can be connected to the Qpath™ cloud server provided by Telexy. Users can transfer patient information and images to Qpath™ cloud server via wired/wireless LAN. The HM70A uses Q-View to access to the Qpath™ cloud server.
Barcode Scanner
Patient information can be automatically transferred to ultrasound system by scanning the bar-code.
Excellent musculoskeletal solutions
NeedleMate™
With pinpoint precision, NeedleMate™ delineates needle location when performing interventions such as nerve blocks. Improved accuracy and efficiency in diagnosis are possible with beam steering added to NeedleMate™.
ElastoScan™
ElastoScan™ detects the presence of a solid mass in tissues and converts the stiffness into color images. It verifies the presence of lesions, reducing the burden of further cervical palpation.
Panoramic
Panoramic imaging displays as an extended field-of-view so users can examine wide areas that do not fit into one image as a single image. Panoramic imaging also supports angular scanning from linear transducer data acquisition.
Excellent cardiovascular solutions

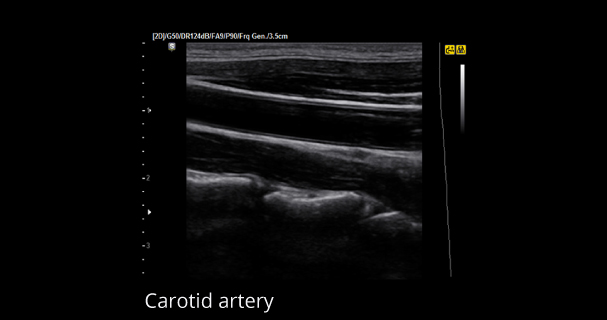

AutoIMT™
AutoIMT™ allows fast measu rement of the carotid artery intima-media thickness (IMT) for diagnosis of the patient’s risks of stroke or heart attack. The simple operation helps enhance exam productivity and increase patient throughput.
Strain
Strain quantitatively displays a Bull’s Eye which shows left ventricular motion and dyssynchrony at a glance.
StressEcho
The StressEcho package includes wall motion scoring and reporting. It includes exercise StressEcho, pharmacologic StressEcho, diastolic StressEcho, and free programmable StressEcho.
A variety of tools to increase effciency
EzExam+™
EzExam+™ enables users to build or to use predefined protocols. It transforms the ultrasound investigation into a streamlined process. EzExam+™ ensures the full investigation is performed, eliminating the risk of forgetting an image or loop capture, as well as measurement and transducer preset changes.
QuickScan™

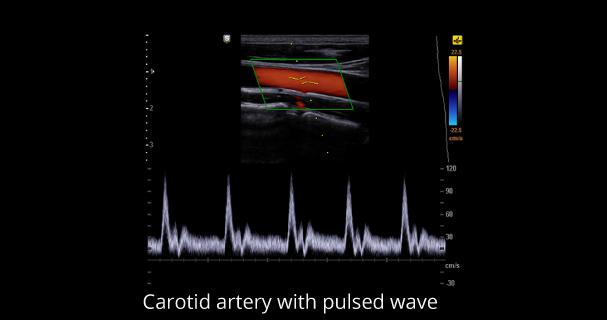

In 2D imaging, QuickScan™ quickly optimizes brightness levels by adjusting the gain and TGC controls. In PW pectral Doppler Mode, QuickScan™ easily optimizes the spectrum by adjusting the scale and baseline.
Fast Booting
SSD technology enables powering on in 85 seconds from the powered off state, and in approximately 25 seconds from the sleep mode.
Full Screen Mode
With one touch, users can expand the image area to fit the entire screen, optimizing the view for image analysis.
Extended battery
The extended battery supports approximately 3 hours of system operation when it is fully charged.

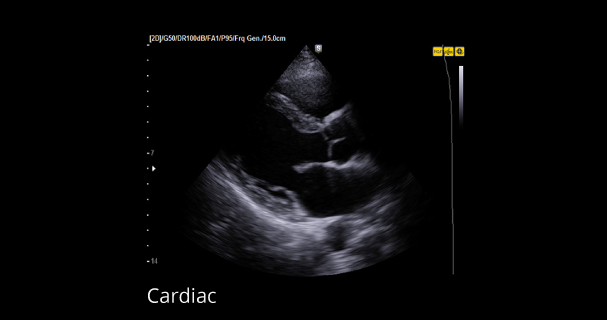

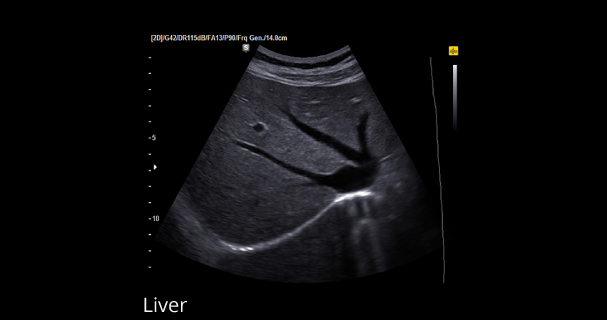

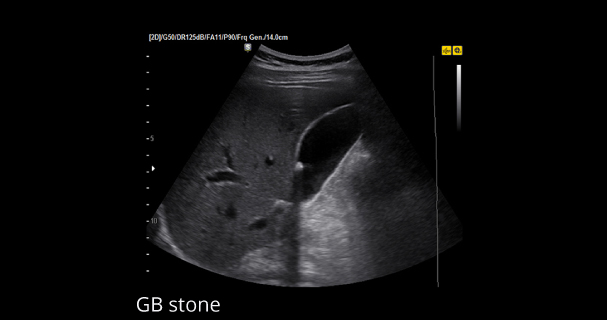

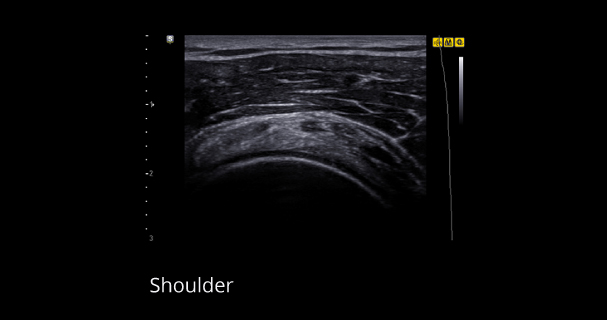

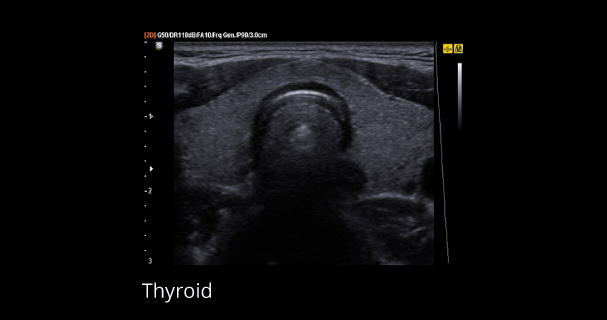

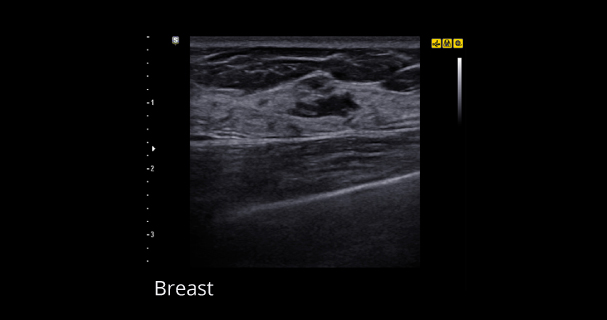

Clinical Images
Product Images
Videos
Documentation
| Information of Cleaning , Disnefectant and Ultrasound Gel | Download |
|---|
Transducers
Curved array transducers
CA1-7AD
Application:
Abdomen, Obstetrics, Gynecology, Musculoskeletal
C2-6
Application:
Abdomen, Obstetrics, Gynecology
CF4-9
Application:
Vascular, Pediatric
CA2-9AD
Application:
Abdomen, Obstetrics, Gynecology
Linear array transducers
L4-7
Application:
Abdomen, Musculoskeletal, Small parts, Vascular
LA3-16AD
Application:
Small parts, Vascular, Musculoskeletal
L7-16
Application:
Musculoskeletal, Small parts, Vascular
LS6-15
Application:
Musculoskeletal, Intra-operative
LS3-14B
Application:
Small parts, Vascular, Musculoskeletal
Volume transducers
V5-9
Application:
Obstetrics, Gynecology, Urology
VN4-8
Application:
Abdomen, Obstetrics, Gynecology
Endocavity transducers
EVN4-9
Application:
Obstetrics, Gynecology, Urology
Phased array transducers
PE2-4
Application:
Abdomen, Cardiac, TCD
P3-8
Application:
Abdomen, Cardiac
P4-12
Application:
Cardiac, Pediatric
CW transducers
DP2B
Application:
Cardiac
TEE transducer
MMPT3-7
Application:
Cardiac
