Dexxum T
CENTRAL DXA
Features
01

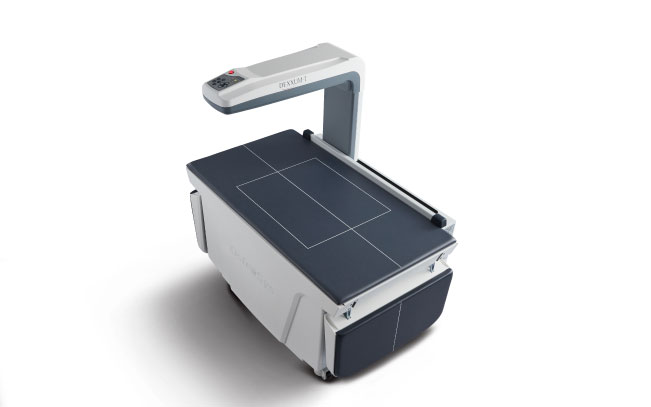

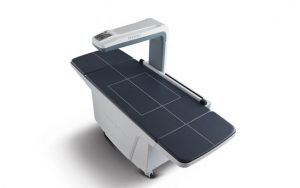

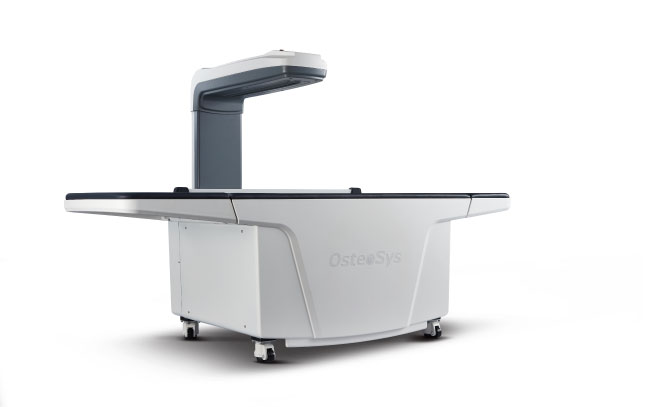

DEXXUM T is a compact and space-saving central Dual X-ray Absorptiometry (DXA). Compared to the other bone mineral densitometer, DEXXUM T is an axial table DXA scanner specially designed with an innovative DXA technology.
02
DEXXUM T is an optimized system with its Pencil Beam Scanning technology for the diagnosis of osteoporosis and measurement of the BMD for post-menopausal women or men over their 50’s.
03
Considering the limited space of small clinics and hospitals, we made DEXXUM T with its minimum footprint, so that you can install and use DEXXUM T as a normal patient table for the ultrasound scanner.
04

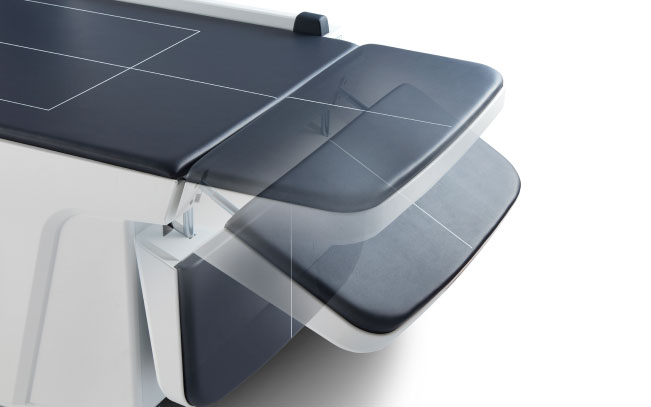

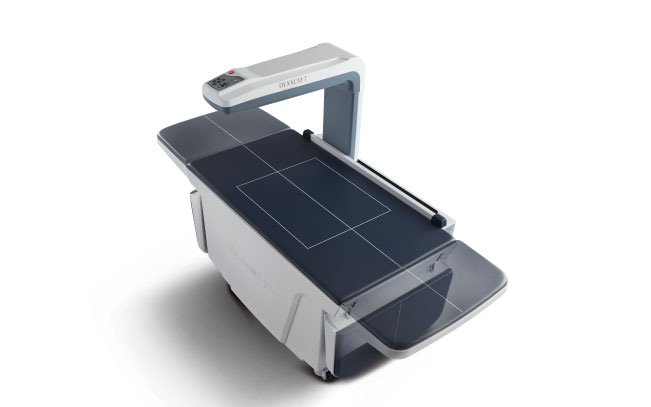

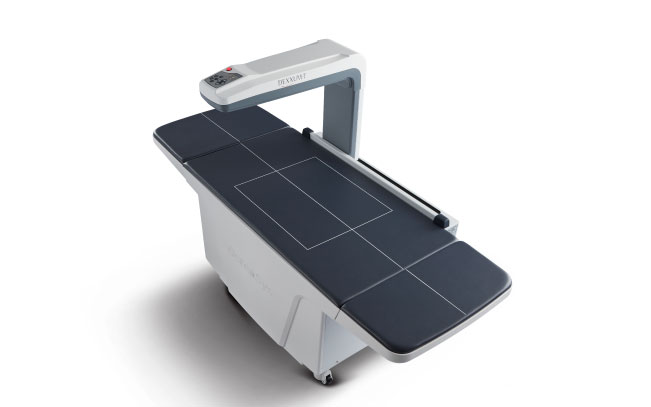

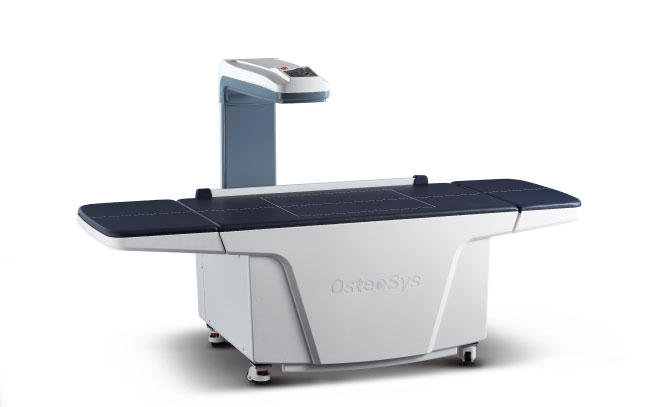

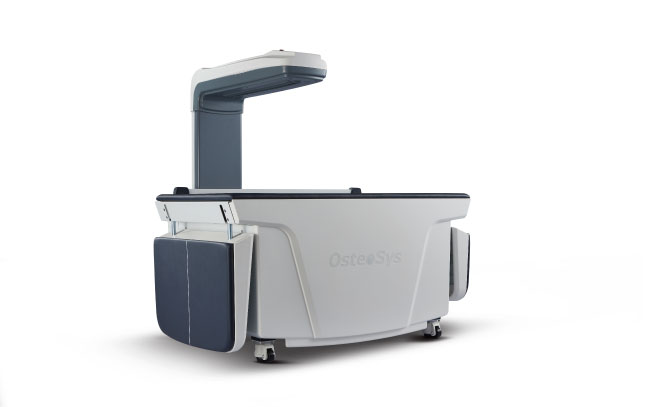

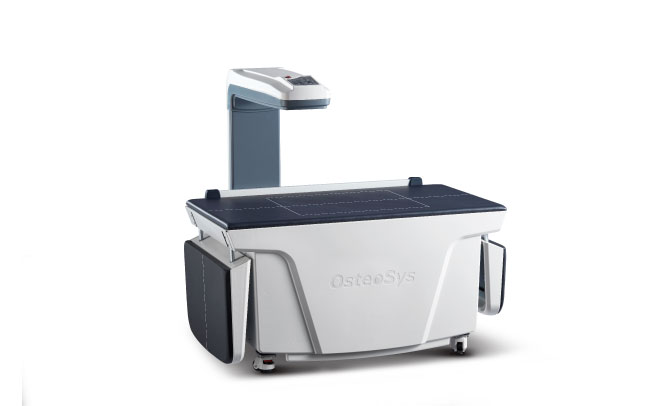

The tri-fold-type table is an operator-friendly and a patient-oriented solution for the BMD measurement
05

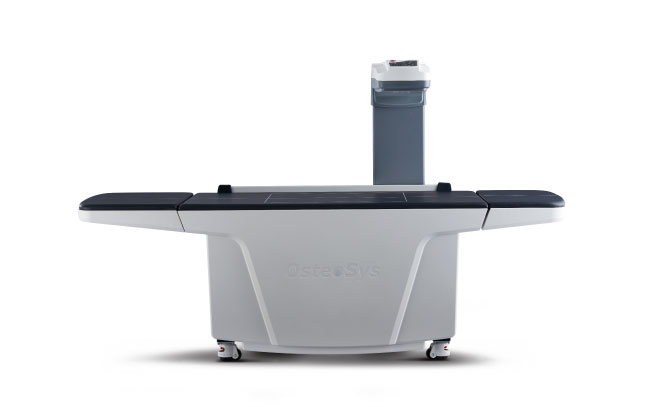

We lowered the height of the table as much as possible for the safety and relaxation of the senior patients and those with relatively low heights.

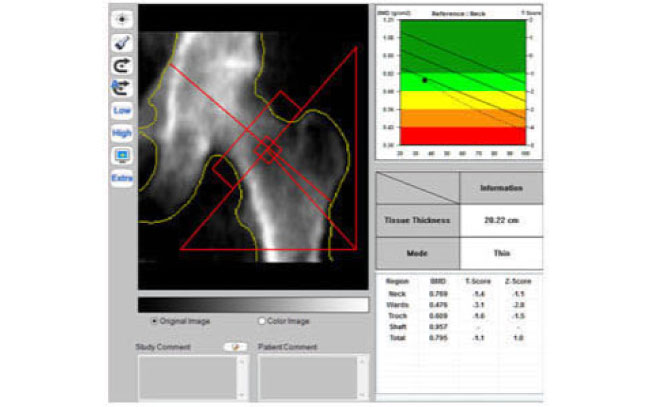

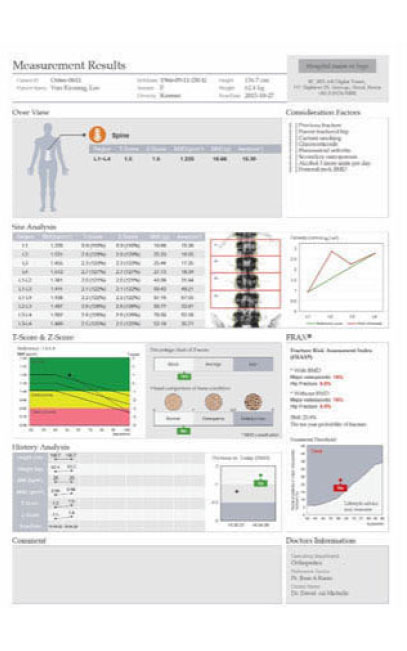

Clinic Images
Clinic Images
Specifications
| Measurement Type | DXA (Central Dual Energy X ray Absorptiometry) |
|---|---|
| Measurement Method | Pencil Beam |

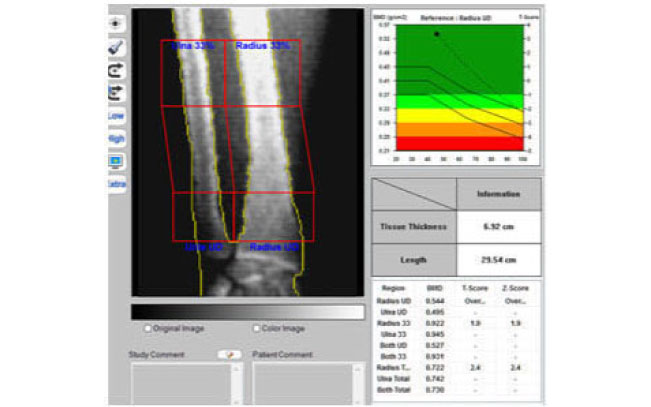

| Scan Site | AP Spine, Dual Femur, Femur , Forearm |
| Scan Time | (Fast): AP Spine: 85 sec. Femur: 65 sec. (Normal) AP Spine: 187 sec. Femur: 120 sec. |
| Precision & Accucary | <1.0% C.V. |

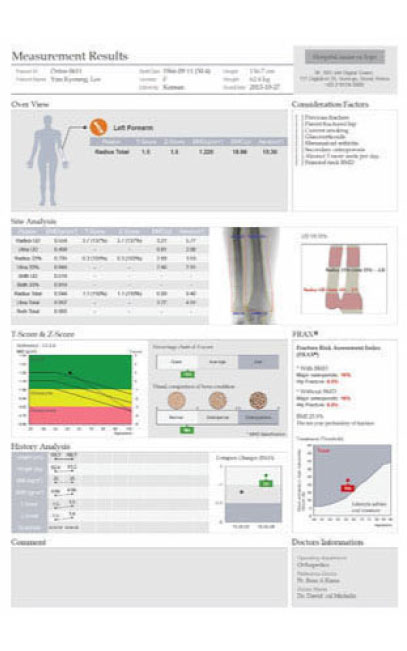

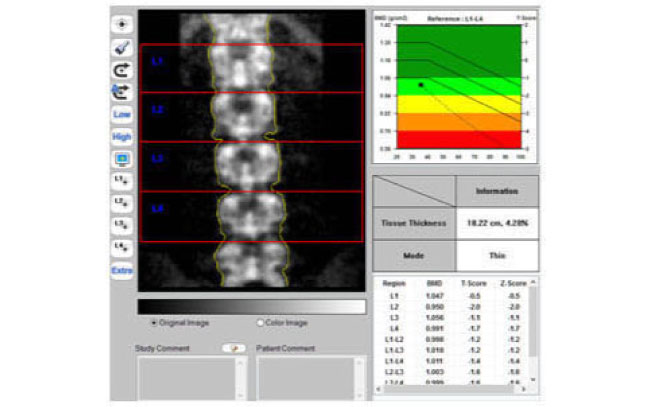

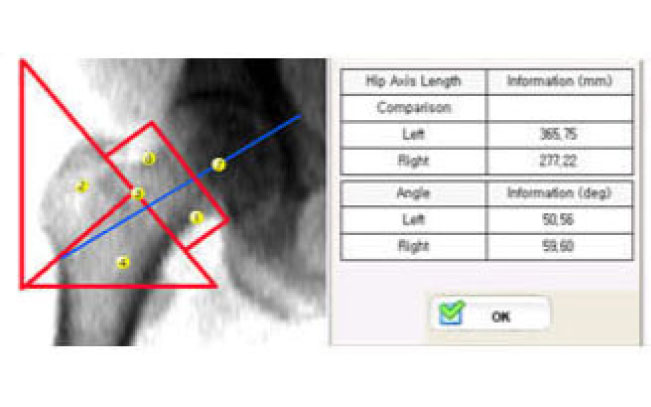

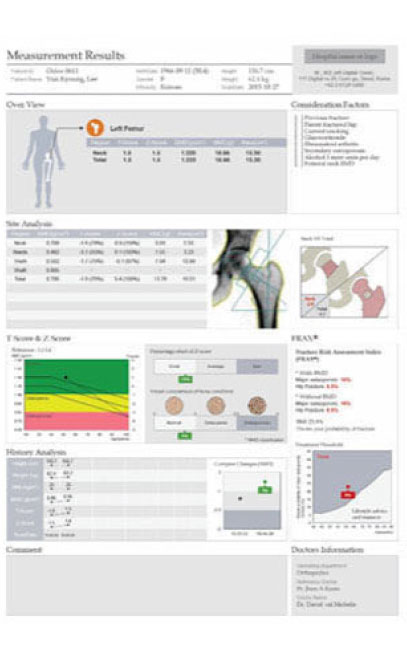

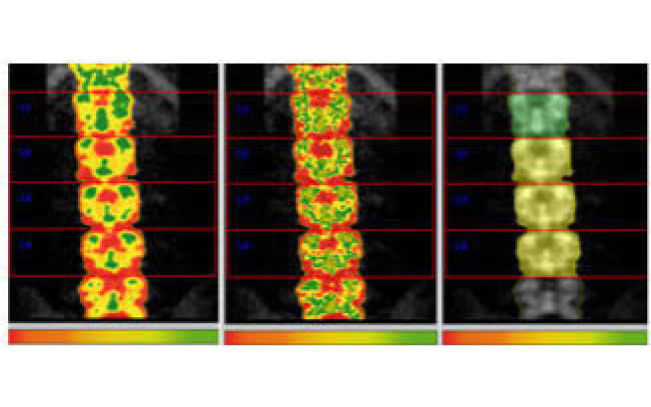

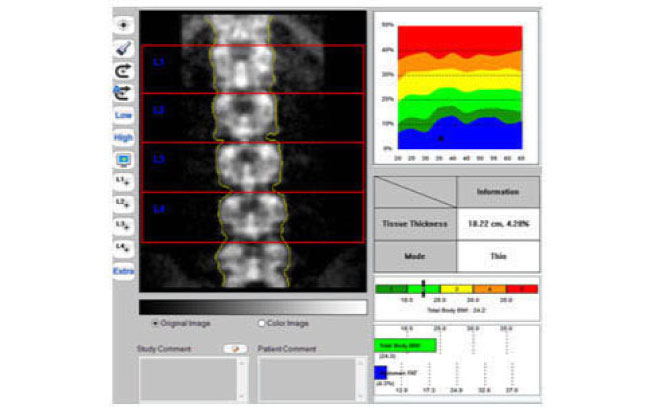

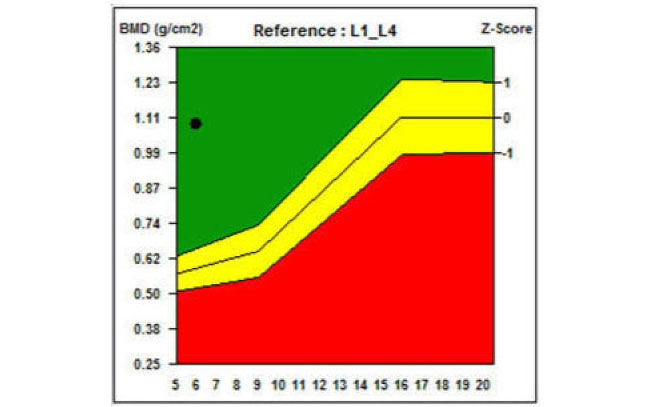

| Measurement Parameter | BMD, BMC, Area, Tissue Thickness , Hip Analyse color Mapping (BCM, RCM, OCM), FRAX, pediatrics |
| Dimension | 1900 x 800 x 1213 mm |
| Table height | 64.2 Cm |
