CombiDiagnost R90

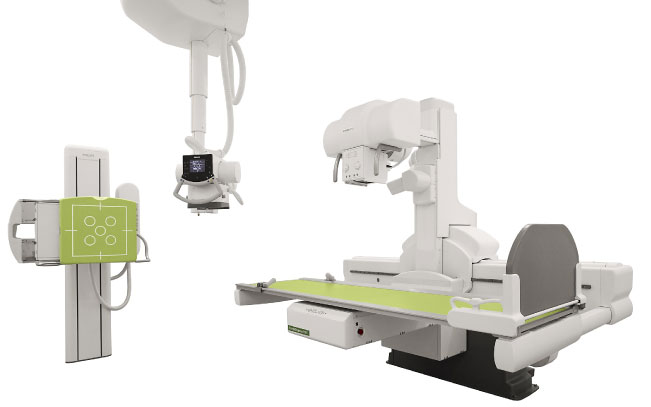

This remote controlled fluoroscopy system in combination with high-end digital radiography is designed for consistent, superb image quality and high room utilization, in a cost effective manner.

Overview

Features

Supports diagnostic confidence

Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.

Detectors that deliver

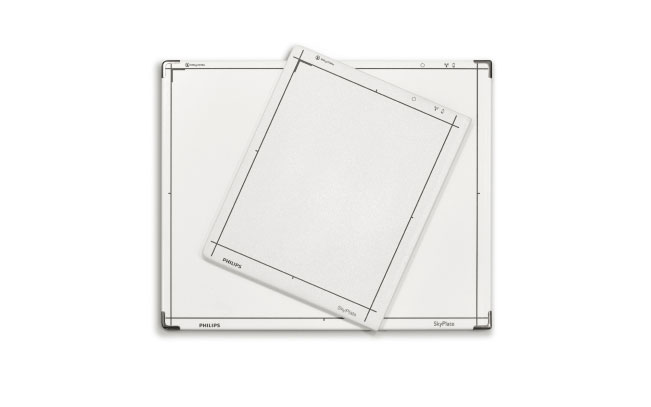

The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.

Hidden details revealed

Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.

Superb image quality at low dose

If your focus is pediatrics, dose-saving features on the CombiDiagnost R90 include dedicated pediatric fluoroscopy settings, Grid Controlled Fluoroscopy, and dose measurement. Low radiation without sacrificing image quality is a benefit to your smaller patients.

Quick, intuitive workflow

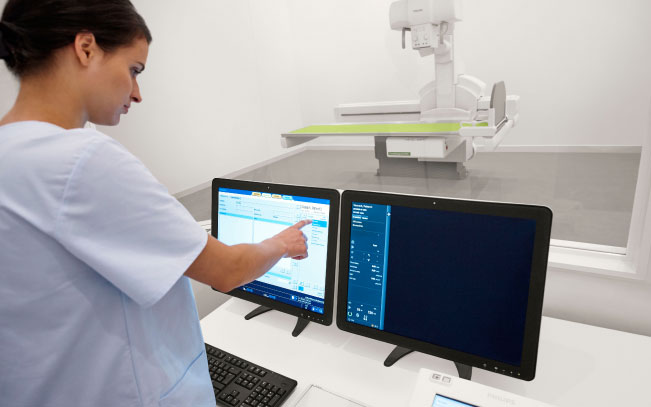

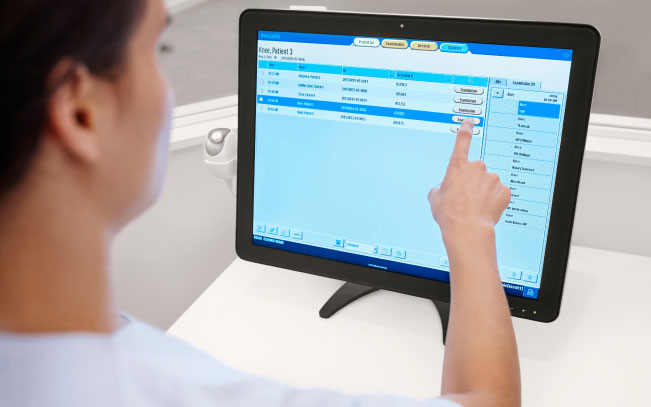

The CombiDiagnost R90 employs our Eleva user interface to provide all the tools and controls necessary for seamless procedures. This one common platform is easy to learn and easy to use, and is the same harmonized user interface found across our radiography portfolio.

Ease of operation

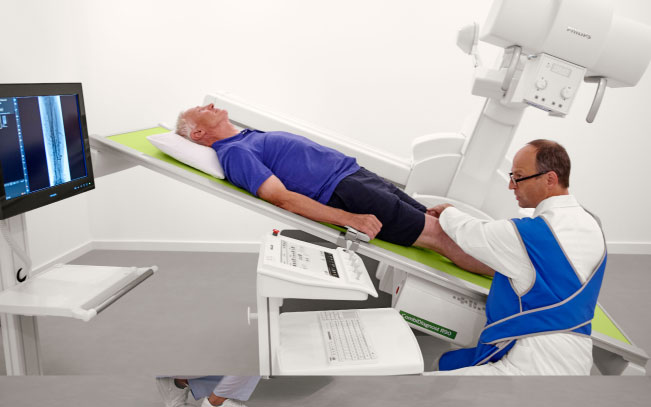

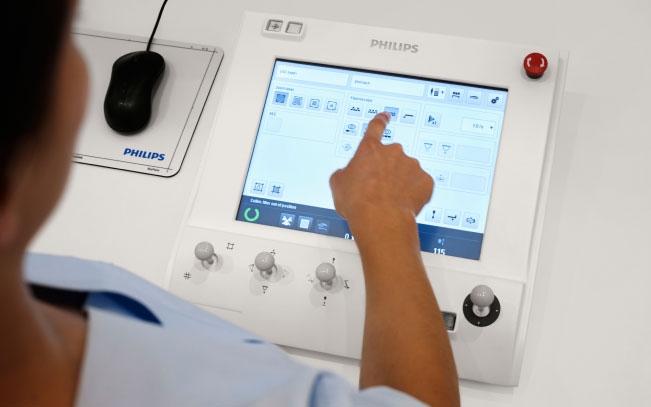

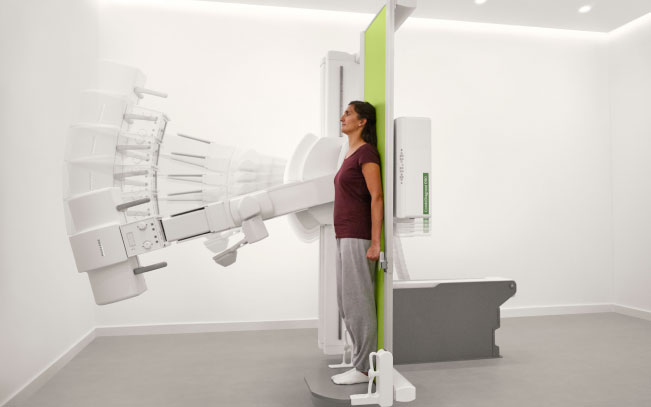

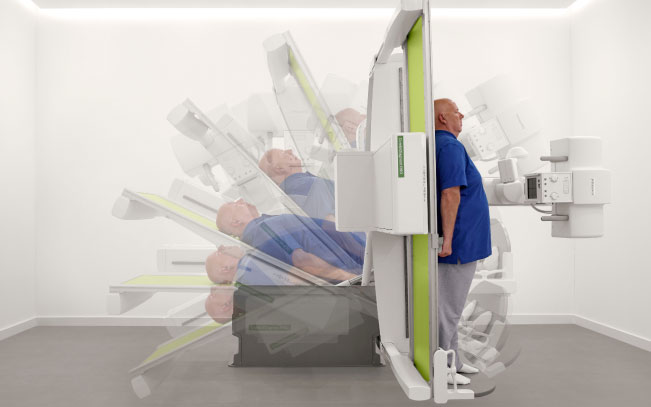

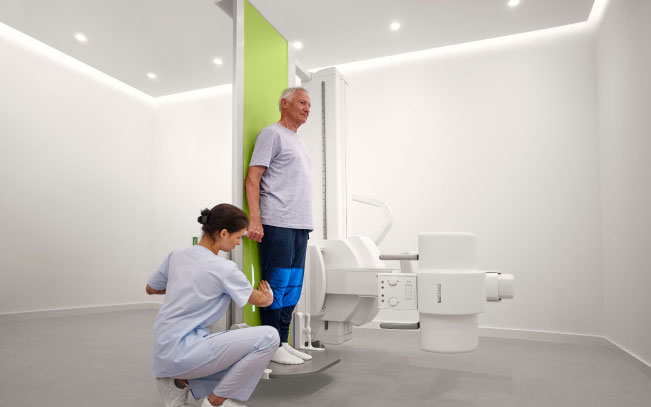

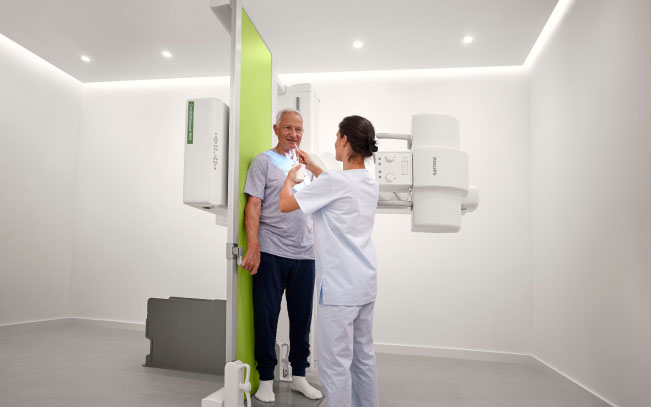

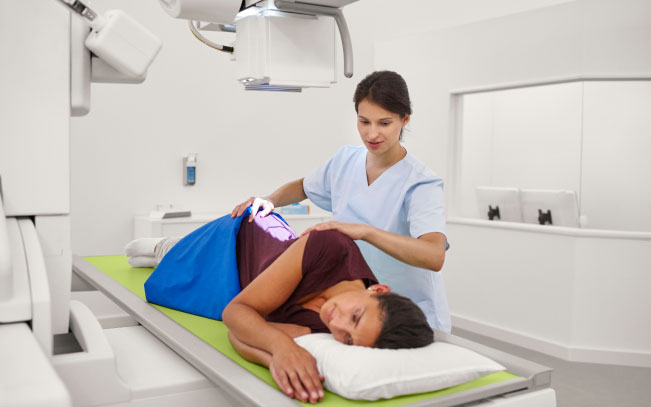

Flexible geometry and integrated DR technology make the CombiDiagnost R90 ease to use. The tiltable table (-90o to +90o) is perfect for all standard fluoroscopy studies. A tilting tube column mechanism enables angled projections in any table position. Intuitive touchscreen control speeds exams.

Specifications

Tube: SRM 0608 ROT GS 505

Anode heat storage capacity	800 kHU (593kJ)
focal spot	0.6 /0.8
Maximum voltage	125 kV (110 kV in GCF)

Generator

Power	65 kW, 80kW optional
Tube voltage flouroscopy	40 – 125 kV
Tube voltage exposure	40 – 150 kV
Exposure techniques	Manual: kV-mAs or kV-mA-s Automatic Exposure Control (AEC) – Intelligent Exporuse (IQX), In-Pulse controlled Automatic kV reduction techniques

Geometry

Motorized compressor	3 kg – 15 kg (6.6 lbs – 33.1 lbs) compression force
Tube column movement range	160 cm (63″)
Table tilt angle	-90°/+90°
Maximum patient weight	284 kg (626 lbs) without limitations
Table height	62 cm – 142 cm (24.4″-59.9″)
Source to Image Distance (SID)	113 cm – 183 cm (44’’ to 72’’)

Ceiling Suspension

Collimator	Motorized, automatic
Type	Four-part telescopic column
Ceiling height at SID 110 cm (44″	2.83 m to 3.21 m (8’8.3″ – 10’5.9″)

Tube: SRO 33100 ROT380 (for CS)

Focal spot	0.6 /1.2
Maximum voltage	150 kV
Anode heat storage capacity	300 kHU (200kJ)

Wireless detector: SkyPlate Large

Type	Digital Csl (Cesium Iodide) flat detector
Detector Size	35 cm x 43 cm (14″ x 17″)
Image matrix size	2330 x 2846 pixel
Detector size	35 cm x 43 cm (14″ x 17″)
Active area	34.48 cm x 42.12 cm (13.6″ x 16.6″)

Wireless detector: SkyPlate Small

Type	Digital CsI (Cesium Iodide) flat detector
Detector Size	35 cm x 43 cm (14″ x 17″)
Active area	22.2 cm x 28.4 cm (8.7″ x 11.2″)
Image Matrix Size	1500 x 1920 pixel

Tube: SRO 33100 ROT380

Anode heat storage capacity	300 kHU (200kJ)
Maximum voltage	150 kV
Focal spot	0.6 /1.6

Digital vertical stand

Motorized tilting	Optional, -20° to +90°
Detector Size	SkyPlate detector
Vertical travel	30 cm – 180 cm (11.8″ – 5’11”)

Dynamic Flat Detector

Image matrix	size2,874 pixel x 2,840 pixel
Acquisition mode continious fluoroscopy	Up to 30 frames per second
Detector Size	43 cm x 43 cm (17″x17″)
Acquisition mode pulsed fluoroscopy	Up to 20 per second
Pixel size	148 µm
