HERA W10

New Momentum of Imaging
HERA W10, the premier model of the HERA platform, will help you get more insight in diagnosis with its intuitive visualizations,
precise analytic features, and instant operation. It is our commitment for Obstetrics and Gynecology applications to support
for life-long healthcare of women, diligently pursuing for new possibilities in ultrasound diagnosis.

Features

Crystal Architectureâ„¢

Crystal Architectureâ„¢, an imaging architecture that combines CrystalBeamâ„¢ and CrystalLiveâ„¢, based on S-Vue Transducerâ„¢, is to provide crystal clear image.

  • CrystalBeamâ„¢ is a new beamforming technology beneficial in delivering high-quality image resolution and increased uniformity of images.
  • CrystalLiveâ„¢ is Samsung’s up-to-date ultrasound imaging engine with enhanced 2D image processing, 3D rendering and color signal processing, to offer outstanding image performance and efficient workflow during complex cases.

GPU Memory*
for fast rendering

X3

Processing Power*
for high-quality images

X11

Data Transfer Rate*
for fast frame rates

X10

* Compared to the Samsung WS80A

CrystalBeamâ„¢

A New Beamforming for In-depth Image Creation
CrystalBeamâ„¢ utilizes Arbitrary Waveform Transmission, Massive Parallel Beamforming, and Synthetic Aperture technologies to produce a faster frame rate and improved image uniformity.

* Compared to the Samsung WS80A

CrystalLiveâ„¢ 2D

Sophisticated 2D Images Processed by CrystalLiveâ„¢
CrystalLiveâ„¢ helps you to make more confident diagnoses with fundamental 2D images. Some major advantages of 2D images include shadow-suppressed images, lessened halo artifacts, and mitigated blurred area.

ShadowHDRâ„¢

ShadowHDRâ„¢ selectively applies high-frequency and low-frequency of the ultrasound to identify shadow areas such as fetal head or spine where attenuation occurs.

HQ-Visionâ„¢

HQ-Visionâ„¢ provides clearer images by mitigating the characteristics of ultrasound images that are slightly blurred than the actual vision.

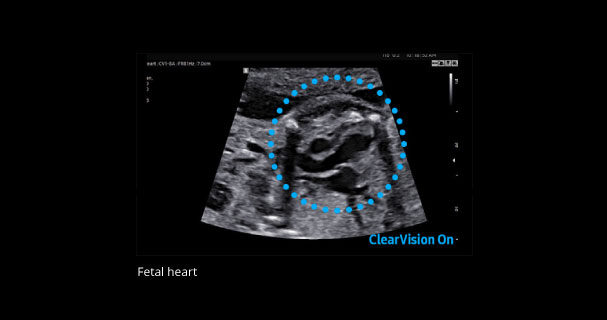

ClearVision

ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images. It reduces halo artifact that occurs when the tissue contour is enhanced, and removes noises on the tissue boundaries.

CrystalLiveâ„¢ 3D

Realistic Description of 3D/4D Performance
CrystalLiveâ„¢ in 3D/4D provides users with more realistic and high-resolution images. It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

CrystalVueâ„¢

CrystalVueâ„¢ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.

RealisticVueâ„¢

RealisticVueâ„¢ displays high resolution 3D anatomy with exceptional detail and realistic depth perception. User selectable light source direction creates intricately graduated shadows for better defined anatomical structures.

HDVIâ„¢2.0

HDVIâ„¢ is a volume rendering technology that improves visualization of edges and small structures in volume data. Upgraded marginal expression and image saturation expresses the very details from angle to shadow of the fetus.

CrystalLiveâ„¢ Color

Detailed Expression of Blood Flow Dynamics
Color performance of CrystalLiveâ„¢ has been improved to clearly visualize the hemodynamics of the blood flow. Greater sensitivity resulting from new color signal processing allows for a more accurate detection of peripheral blood vessels, microcirculatory blood flows, and volumes of slow blood flows.

LumiFlowâ„¢

LumiFlowâ„¢ is a three-dimensional visualization of blood flow, which helps to understand the structure of blood flow and small vessels intuitively.

* Lumiflowâ„¢ feature will be available in certain countries within March 2019.

MV-Flowâ„¢

MV-Flowâ„¢ offers a novel alternative to power Doppler for visualizing slow flow of microvascularized structures. High frame rates and advanced filtering enable MV-Flowâ„¢ to provide a detailed view of blood flow in relation to surrounding tissue or pathology with enhanced spatial resolution.

S-Flowâ„¢

S-Flowâ„¢, a directional Power Doppler imaging technology, can help to detect even the peripheral blood vessels. It enables accurate diagnosis when blood flow examination is especially difficult.

Crystal Clear Cycleâ„¢

Samsung’s Commitment to Life-Long Healthcare for Women
Crystal Clear Cycle™, an integrated solution for women’s health issues, represents Samsung’s commitment to ensuring life-long healthcare for women. The Crystal Clear Cycle™ categorizes the most significant health events for women into six stages and provides effective diagnostic solutions at each stage.

BiometryAssistâ„¢

A semi-automatic technology for biometric measurement, BiometryAssistâ„¢, enables users to measure the growth of the fetus more quickly and with greater accuracy while maintaining exam consistency.

5D CNS+â„¢

5D CNS+â„¢ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain to enhance measurement reproducibility and streamline workflow.

5D Limb Vol.â„¢

5D Limb Vol.â„¢ is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set

FreeFormâ„¢

Ergodynamics that Relieves Inoconveniencet
FreeForm™ refers to Samsung’s new design theme. It was developed to provide a more comfortable diagnostic experience by reducing the need for movement from one spot to another. Our goal is to satisfy user’s working environment by applying a mechanism to the control panel in its widemoving range, as well as by considering a user’s arm reach. This enables it to offer a sufficient amount of space for the user’s knee.

Control Panel Moving Mechanism

An internal study showed that Samsung’s Control Panel Moving Mechanism reduces shoulder stress by about a third compared to the previous model. It does this by providing users with more space near the control panel area, resulting in less repetitive strain from hours of scanning. Users can now pull the control panel and rotate its angle at the same time.

* Control panel usability study compared to the Samsung WS80A. Tested using same body postures.

Streamlined Workflow

Customizable for The Way You Work
We believe that a truly great system offers customer-centric working conditions. Users of the HERA W10 have the option of customizing its diagnostic settings based on personalized protocol. It results in a more streamlined examination process and faster workflows.

Ergodynamics that Relieves Inoconveniencet

We believe that a truly great system offers customer-centric working conditions. Users of the HERA W10 have the option of customizing its diagnostic settings based on personalized protocol. It results in a more streamlined examination process and faster workflows.

Fast boot up with MobileSleep

Booting-up from sleep mode saves about 63% of your time, when compared to normal boot-up. MobileSleep enters to the sleep mode quickly for easy maneuverability of the system.

Clinical Images

Videos

Documentation

Information of Cleaning , Disnefectant and Ultrasound Gel Download

Transducers

Linear array transducers

L3-12A

Application:
Small parts, vascular, musculoskeletal

LA2-9A

Application:
Small parts, vascular, musculoskeletal

Volume transducers

CV1-8A

Application:
Abdomen, obstetrics, gynecology

EV3-10B

Application:
Obstetrics, gynecology, urology

Endocavity transducers

EA2-11B

Application:
Obstetrics, gynecology, urology

VR5-9

Application:
Obstetrics, gynecology, urology

E3-12A

Application:
Obstetrics, gynecology, urology

Phased array transducers

PA4-12B

Application:
Cardiac, pediatric

PM1-6A

Application:
Cardiac, TCD, abdomen

PA3-8B

Application:
Cardiac, pediatric, abdomen

Convex Array Transducers
